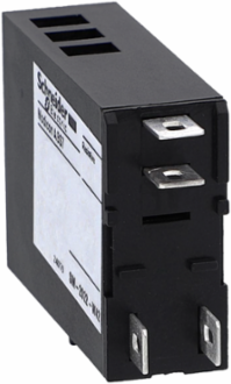

Schneider Electric ABS7SC3BA Plug-in Solid State Relay 12.5 mm 24 V DC 2 A
Schneider Electric ABS7SC3BA Plug-in Solid State Relay 12.5 mm 24 V DC 2 A
- MPN: ABS7SC3BA
- PPN: SCH-ABS7SC3BA
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$32.71/ EA
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This plug-in solid state relay is compatible with Modicon ABE7 connection sub-bases. It is a solid state output relay with a discrete input voltage of 24V DC and a discrete output current of 10A. The response time is ≤0.1ms from state 1 to 0 and ≤0.2ms from state 0 to 1. The width pitch is 12mm. It weighs 0.016kg. It is suitable for all types of industrial applications. This product is suitable for use with Modicon ABE7P16T318, ABE7P16T330, ABE7R16T330, ABE7P16T334, ABE7P16T318E, ABE7P16T330E and ABE7R16T332 sub-base. Modicon ABE7 means greater simplicity to rationalise wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Specifications
Specifications
- Relay Type
- output relay
- Quantity Per Set
- set of 4
Range Of ProductAdvantys Telefast ABE7
Product Or Component Typeplug-in solid state relay
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1409004EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Voltage State 1 Guaranteed
- 18.6 V DC
- Discrete Input Voltage
- 24 V DC
- Current State 1 Guaranteed
- 2.9 mA DC
- Product Compatibility
- ABE7P16T318 || ABE7P16T330 || ABE7R16T330 || ABE7P16T334 || ABE7P16T318E || ABE7P16T330E || ABE7R16T332
- Net Weight
- 0.016 kg
- Discrete Output Voltage
- 24 V DC self-protected
Current State 0 Guaranteed0.4 mA DC
Response Time<= 0.1 ms from state 1 to 0 || <= 0.2 ms from state 0 to 1
Discrete Output Current2000 mA
Voltage State 0 Guaranteed3.8 V DC
Width Pitch Dimension12 mm
Contractual warranty
- Warranty
- 18 months
