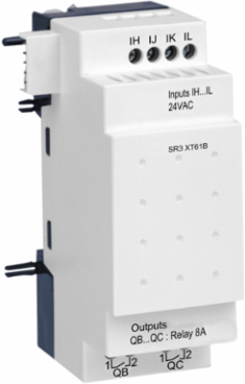

Schneider Electric SR3XT61B Zelio Logic Discrete I/O Extension Module, 4 Inputs, 2 Relay Outputs, 24V AC
- MPN: SR3XT61B
- PPN: SCH-SR3XT61B
CAD
$95.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Schneider Electric Zelio Logic SR3 Discrete I/O Extension Module Smart Relays uses a supply voltage of 24 volts alternating current, has 6 inputs / outputs contact with screw-clamp terminals. This Discrete I/O Extension Module Smart Relays provides Zelio Logic relays with additional inputs and outputs. It has a compact form-factor, allowing installation on DIN rail. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. More I/O than SR2 model, for larger applications. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-5, EN/IEC 61000-4-12 and EN/IEC 61000-4-4 L3 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Complementary Attributes
- Maximum Altitude Transport
- 3048 m
Important Information Attributes
- Current State 0 Guaranteed
- <= 0.5 mA discrete input), <= 0.5 mA discrete input)<= 0.5 mA discrete input), <= 0.5 mA discrete input)
- Electrical Durability
- AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1, DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1, DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1
- Response Time
- 50...255 ms FBD from state 1 to state 0)discrete input, 50 ms ladder from state 0 to state 1)discrete input, 50 ms ladder from state 1 to state 0)discrete input50...255 ms FBD from state 0 to state 1)discrete input10 ms from state 0 to state 1)relay output, 5 ms from state 1 to state 0)relay output
- Voltage State 0 Guaranteed
- <= 5 V discrete input, <= 5 V discrete input<= 5 V discrete input, <= 5 V discrete input
- Certificate Agency
- CSA, GL, GOST, UL, C-tick
- Carbon Footprint Of The Distribution Phase [A4]
- 0.041309160396516005, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- kg CO2 eq., 0
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 152 kg CO2 eq., 151.92035887435827
- Local Publishable Date
- 2025-11-25
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2011013EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1846
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Checks
- program memory on each power up
- Contacts Type And Composition
- NO relay output
- Mechanical Durability
- 10000000 cycles relay output
- Operating Rate In Hz
- 0.1 Hz at Ie)relay output10 Hz no load)relay output
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Zelio Logic
- Reverse Polarity Protection
- with
- Supply Frequency
- 50/60 Hz
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 153 kg CO2 eq.
- Pep Code
- ENVPEP2011013EN
- Pep Verification Date
- 2026-06-26
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity mix; Consumption mix; Low voltage; 2022; France, FR
- Energy Model - Use [B6]
- Electricity mix; Consumption mix; Low voltage; 2022; Italy, IT
- Recyclability Potential In %
- 10
- [Us] Rated Supply Voltage
- 24 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Current State 1 Guaranteed>= 2 mA discrete input), >= 2 mA discrete input)>= 2 mA discrete input), >= 2 mA discrete input)
Environmental CharacteristicEMC directive conforming to IEC 61000-6-2, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61131-2 zone Blow voltage directive conforming to IEC 61131-2
Switching Capacity In Ma>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)
Voltage State 1 Guaranteed>= 14 V discrete input, >= 14 V discrete input>= 14 V discrete input, >= 14 V discrete input
Connections - Terminalsscrew terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endscrew terminals, 2 x 0.25...2 x 0.75 mm² 24 AWG...18 AWG) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) solidscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) solid
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2207019711537559, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.260809031921167
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
Clock Drift12 min/year 0-55 °C
Cycle Time6-90 ms
Number Or Control Scheme Lines120-120 ladder
Overvoltage CategoryIII conforming to IEC 60664-1
Product Or Component Typediscrete I/O extension module
ReturnabilityNo
Software Versionv6.2.5-6
Supply Voltage Limits20.4-28.8 V
Tightening Torque0.5 N.m
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo provide automated control of simple systems from 10 to 40 I/O for 10 years 100% of the time with a power consumption of 6W.To provide automated control of simple systems from 10 to 40 I/O for 10 years 100% of the time with a power consumption of 6W.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh350.4
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
[Uimp] Rated Impulse Withstand Voltage4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Disturbance Radiated/Conductedclass B EN 55022-11 group 1
Package Weight(Lbs)117.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 153.4431790378297
- Environmental Disclosure
- ENVPEP2011013EN
- Ip Degree Of Protection
- IP20 IEC 60529 terminal block)IP40 IEC 60529 front panel)
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2011013EN
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2011013EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % without condensation or dripping water
Pep Verification Date2026-06-26
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- discrete I/O extension module
Range Of ProductZelio Logic
ETIM
- ETIM 8
- EC001417
ETIM 9EC001417
Output Attributes
- Number Of Outputs
- 2 relay
- Output Voltage Limits
- 5...30 V DC relay output)24...250 V AC
Output Thermal Current8 A for all 2 outputs relay output
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Frequency
- 47...53 Hz, 57...63 Hz
- Discrete Input Number
- 4
- Input Impedance
- 4.6 kOhm discrete input
Discrete Input Current4.4 mA
Discrete Input Voltage24 V AC
