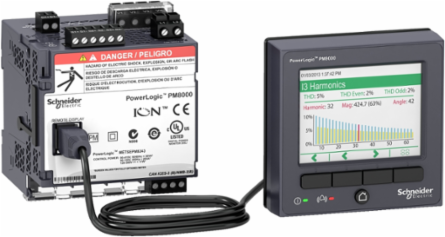

Schneider Electric METSEPM8114 Power quality meter, PowerLogic PM8000, Essential, transducer and remote display, 64MB, 128s/c
- MPN: METSEPM8114
- PPN: SCH-METSEPM8114
CAD
$3476.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The PowerLogic PM8114 comes in a DIN Rail mount form factor with a remote display and LVDC control power. It is designed to help you ensure reliability and efficiency of your power-critical facilitiy. With its modular, flexible, and power ION technology, you can build custom applications for each meter. It comes with revenue grade accuracy, multiple communication ports, and a color graphical display. Certified by third party labs for Class 0.2S energy accuracy (IEC62052-11, IEC62053-24, IEC62053-22). Cybersecurity features include secure protocols (HTTPs, sFTP, Secure ION), security event logging, Syslog protocol. Ability to enable/disable communication ports and support 50 configurable user account to help manage access. With 64MB of memory to support up to 10 data logs (160 channels), 50+ user-definable alarms, waveform captures upto 128 samples/cycle, 1/2 cycle RMS logging. The storage can also be used for custom web pages, min/max logs, energy trends, and Time of Use. The ability to timestamp events to +/-1ms utilizing time synchronization. Time synch method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 3 digital inputs and one digital output, plus the ability to add up to 4 option modules. I/O option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs Wide control power range of 20-60 VDC. Operating environment of -25 to +70°C; Humidity rating of 5% to 95%; Altitude up to 3000 m.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Canada
Depth90.8 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU 115 kbauds - 2-wire, ION 115 kbauds - 2-wire, DNP3, IEC 61850, Modbus TCP/IPEthernet Modbus TCP/IP daisy chain 10/100 Mbit/s, RSTP 801.1d 2004
- Communication Network Type
- IPv6 (internet protocol)
Communication ServiceRSTP support, DHCP, SMTP e-mail notification, NTP time synchronization, SNMP, PTP time synchronization
Communication Port SupportETHERNETscrew terminal block RS485
Complementary Attributes
- Line Rated Current
- 5 A, 1 A, 10 A
Important Information Attributes
- Cybersecurity
- enable/disable communication ports, robust security logs, port hardening, password protection, Syslog protocol support
- Device Application
- power monitoring, WAGES metering
- Information Displayed
- voltage, current, frequency, power, energy consumption, harmonic distortion
- Market Segment
- buildings large building network management: main incomerbuildings large building network management: sub feederbuildings multi-site network management: sub feeder, data center small building network management: sub feederhealthcare multi-site network management: sub feeder, industry network management: sub feeder, buildings large building cost management: billing: sub feeder, buildings small building network management: main incomer, buildings medium building network management: main incomer, buildings multi-site network management: main incomer, data center large building network management: billing: main incomer, healthcare medium building network management: main incomer, industry multi-site network management: main incomer, utility network management: sub feeder
- Mounting Mode
- clip-on, flush-mounted
- Number Of Poles
- 3P, 1P + N, 3P + N
- Type Of Measurement
- apparent power per phase, rmspower factor per phase, rmscurrentvoltage total, frequency total, active and reactive power total, apparent power total, power factor total, active and reactive power per phase, rms
- Certificate Agency
- CE, cULus, N998
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 3 kg CO2 eq., 2.942759942214244
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 159 kg CO2 eq., 159.41182079984893
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=PLSED310058EN_Web.pdf, PLSED310058EN
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Serviceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Device Short Name
- PM8114
- Display Type
- remote LCD display
- Frequency Measurement Range
- 42-69 Hz
- Measurement Current
- 50-10000 mA
- Memory Capacity
- 64 MB
- Power Consumption In W
- 18 W
- Product Name
- PowerLogic PM8000
- Provided Equipment
- remote display
- Returnability
- Yes
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 362 kg CO2 eq.
- Pep Code
- ENVPEP2508020EN
- Pep Verification Date
- 2025-09-15
- Psr Version
- PSR-0005-ed3-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Canada, CA
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 17
- Width Nominal
- 90.5 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9028300000
Data Recordingharmonics logs, waveform logs, trending/forecasting, event logs, alarm logs, data logs, sequence of event recording, sag and swell logs, min/max of instantaneous values, time stamping, GPS synchronisation, 10 data recorders
Electromagnetic Compatibilityelectrostatic discharge conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6magnetic field at power frequency conforming to IEC 61000-4-8voltage dips and interruptions immunity test conforming to IEC 61000-4-11immunity to impulse waves conforming to IEC 61000-4-12conducted and radiated emissions conforming to EN 55022, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to ICES-003conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579surge withstand conforming to IEEE C37.90.1
Isolation VoltageIII400-690 V conforming to IEC 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
Measurement Accuracycurrent +/- 0.1 %, voltage +/- 0.1 %active energy +/- 0.2 %
Network Frequency50 Hz, 60 Hz
Power Quality AnalysisEN 50160 2010 compliance reportIEEE 519 2014 compliance report, up to the 63rd harmonic, harmonic distortion, waveform capture, voltage sag and swell detection, programmablity (logic and math functions)IEC 62586 power quality monitoring
Web Servicescustomizable home page, file upload/download via FTP, file upload/download via SFTP, web server, alarm notification by e-mail, viewing of captured waveform (FTP), viewing of captured waveform (web), HTTPS server
Carbon Footprint Of The Distribution Phase [A4]0.6205364693221147, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.04030272069320569, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]199 kg CO2 eq., 199.2820090070477
Local Data StatusPublishable
Return IndicatorY
Device TypeRelay, Control & Measurement - measuring, monitoring device
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2508020EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2345
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Product Kit IdentifierN
Display Resolution320 x 240 pixels QVGA
Energy Efficiency OptimizedFalse
Installation CategoryIII
Measurement Voltage57-400 V AC 42...69 Hz between phase and neutral100-690 V AC 42...69 Hz between phases
Mounting SupportDIN rail meter deviceframework remote display
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typepower meter
RangePowerLogic
Sampling Rate128 samples/cycle
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTechnical data:& 10Supply Voltage& 1090...415 V AC 45...65 Hz +/- 10 %& 10110...415 V DC +/- 10 %& 10Measurement voltage& 1057…400 V AC 42...69 Hz between phase and neutral& 10100…690 V AC 42...69 Hz between phases& 10Measurement current& 1050…10000 mA
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh414.348
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal90.5 mm
[Us] Rated Supply Voltage20...60 V DC +/- 10 %
Package Weight(Lbs)1.268 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 362.2974289391262
- Circularity Profile
- ENVEOLI2508020EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 %
- Pep Verification Date
- 2025-09-15
- Psr Version
- PSR-0005-ed3-2023 12 08
Take BackNo
China Rohs RegulationX
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Environmental DisclosureENVPEP2508020EN
Ip Degree Of ProtectionIP30 conforming to IEC 60529
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2508020EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- power meter
Provided Equipmentremote display
ETIM
- ETIM 8
- EC002301
ETIM 9EC002301
Output Attributes
- Number Of Outputs
- 1 pulse
Input Attributes
- Analogue Input Type
- voltage (impedance 5 MOhm)current (impedance 0.3 mOhm)
Number Of Inputs3 digital 30 V AC3 digital 60 V DC
Accessories
