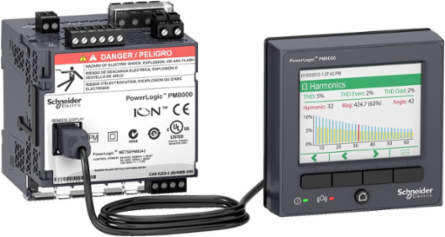

Schneider Electric METSEPM8144 Power quality meter, PowerLogic PM8000, Essential, transducer and remote display, 64MB, 128s/c
Schneider Electric METSEPM8144 Power quality meter, PowerLogic PM8000, Essential, transducer and remote display, 64MB, 128s/c
- MPN: METSEPM8144
- PPN: SCH-METSEPM8144
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4131.32/ EA
Description
Power quality meter, PowerLogic PM8000, Essential, transducer and remote display, 64MB, 128s/c
Specifications
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Circularity Profile
- ENVEOLI1406022EN
Environmental DisclosureENVPEP1406022EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Communication Network Type
- IPv6 (internet protocol)
- Communication Port Support
- ETHERNET || screw terminal block RS485
- Height
- 90.5 mm
- Sampling Rate
- 128 samples/cycle
- Memory Capacity
- 64 MB
- Product Certifications
- CE || cULus || N998
- Communication Port Protocol
- Modbus RTU 115 kbauds - 2-wire || ION 115 kbauds - 2-wire || DNP3 || IEC 61850 || Modbus TCP/IP || Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s || RSTP 801.1d 2004
- Communication Service
- SMTP e-mail notification || RSTP support || NTP time synchronization || DHCP || PTP time synchronization
- Display Resolution
- 320 x 240 pixels QVGA
- Net Weight
- 528 g
- Measurement Current
- 50-10000 mA
- [Us] Rated Supply Voltage
- 90...415 V AC 45...65 Hz +/- 10 % || 110...415 V DC +/- 10 %
- Measurement Accuracy
- current +/- 0.1 % || voltage +/- 0.1 % || active energy +/- 0.2 %
- Poles Description
- 3P || 1P + N || 3P + N
- Provided Equipment
- remote display
- Cybersecurity
- password protection || Syslog protocol support || port hardening || robust security logs || enable/disable communication ports
- Analogue Input Type
- voltage (impedance 5 MOhm) || current (impedance 0.3 mOhm)
- Width
- 90.5 mm
- Device Application
- WAGES metering || power monitoring
- Installation Category
- III
Network Frequency50 Hz || 60 Hz
Power Quality AnalysisEN 50160 2010 compliance report || IEEE 519 2014 compliance report || up to the 63rd harmonic || harmonic distortion || waveform capture || voltage sag and swell detection || programmablity (logic and math functions) || IEC 62586 power quality monitoring
Measurement Voltage57-400 V AC 42...69 Hz between phase and neutral || 100-690 V AC 42...69 Hz between phases
StandardsIEC 62053-22 || IEC 62053-24 || IEC 62052-11 || IEC 61557-12 || IEEE 1588 || IEC 62586-2 || IEC 61326-1
Number Of Outputs1 pulse
Type Of Measurementcurrent || voltage per phase, rms || frequency total || active and reactive power total || apparent power total || power factor total || active and reactive power per phase, rms || apparent power per phase, rms || power factor per phase, rms
Frequency Measurement Range42-69 Hz
Power Consumption In Va18 VA 415 V AC
Number Of Inputs3 digital 30 V AC || 3 digital 60 V DC
Depth90.8 mm
Information Displayedvoltage || current || frequency || power || energy consumption || harmonic distortion
Mounting Modeflush-mounted || clip-on
Mounting SupportDIN rail meter device || framework remote display
Data Recordingsequence of event recording || event logs || min/max of instantaneous values || harmonics logs || alarm logs || GPS synchronisation || waveform logs || data logs || time stamping || trending/forecasting || sag and swell logs || 10 data recorders
Line Rated Current10 A || 5 A || 1 A
Isolation VoltageIII400-690 V conforming to IEC 61010-1:ed. 3 || III400-690 V conforming to EN 61010-1:ed. 3 || III347-600 V conforming to UL 61010-1:ed. 3 || III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
Web Servicescustomizable home page || file upload/download via FTP || file upload/download via SFTP || web server || alarm notification by e-mail || viewing of captured waveform (FTP) || viewing of captured waveform (web) || HTTPS server
Display Typeremote LCD display
Accuracy Classclass 0.2S active energy IEC 62053-22 || class 0.2 active energy ANSI C12.20 || class 0.2 active power IEC 61557-12 || class 0.5S reactive energy IEC 62053-24 || class 0.5 power factor IEC 61557-12 || class 0.2 voltage IEC 61557-12 || class 0.2 current IEC 61557-12
Specifications
- Width
- 90.5 mm
- Weight
- 528 g
- Product Name
- PowerLogic PM8000
- Device Short Name
- PM8144
Height90.5 mm
Product Or Component Typepower meter
RangePowerLogic
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Ip Degree Of Protection
- IP30 conforming to IEC 60529
Electromagnetic Compatibilityelectrostatic discharge conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test conforming to IEC 61000-4-4 || surge immunity test conforming to IEC 61000-4-5 || conducted RF disturbances (2...150 Hz) conforming to IEC 61000-4-6 || magnetic field at power frequency conforming to IEC 61000-4-8 || voltage dips and interruptions immunity test conforming to IEC 61000-4-11 || immunity to impulse waves conforming to IEC 61000-4-12 || conducted and radiated emissions conforming to EN 55022 || conducted and radiated emissions conforming to EN 55011 || conducted and radiated emissions conforming to FCC part 15 || conducted and radiated emissions conforming to ICES-003 || conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579 || surge withstand conforming to IEEE C37.90.1
Relative Humidity5-95 %
Operating Altitude9842.52 ft (3000 m)
