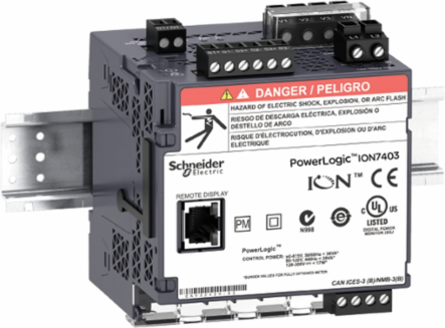

Schneider Electric METSEION7403E Power quality meter, PowerLogic ION7400, Essential, transducer, 64 MB, 128 s/c
- MPN: METSEION7403E
- PPN: SCH-METSEION7403E
CAD
$3291.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The PowerLogic ION7403E comes in a DIN Rail mount form factor. It is designed to bring operational awareness and efficiency for your Utility Feeder applications in substation. With its modular, flexible, and power ION technology, you can build custom applications for each meter. It comes with revenue grade accuracy, multiple communication ports, and a color graphical display. Certified by third party labs for Class 0.2S energy accuracy (IEC62052-11, IEC62053-24, IEC62053-22). Cybersecurity features include secure protocols (HTTPs, sFTP, Secure ION), security event logging, Syslog protocol. Ability to enable/disable communication ports and support 50 configurable user account to help manage access. With 64MB of memory to support up to 10 data logs (160 channels), 50+ user-definable alarms, waveform captures upto 128 samples/cycle, 1/2 cycle RMS logging. The storage can also be used for custom web pages, min/max logs, energy trends, and Time of Use. The ability to timestamp events to +/-1ms utilizing time synchronization. Time synch method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 3 digital inputs and one digital output, plus the ability to add up to 4 option modules. I/O option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs Wide control power range of 90-415 VAC / 110-415 VDC. Operating environment of -25 to +70°C; Humidity rating of 5% to 95%; Altitude up to 3000 m.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Canada
Depth90.8 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU 115 kbauds - 2-wire, ION 115 kbauds - 2-wire, DNP3, IEC 61850, Modbus TCP/IPEthernet Modbus TCP/IP daisy chain 10/100 Mbit/s, RSTP 801.1d 2004, DLMS
- Communication Network Type
- IPv6 (internet protocol)
Communication ServiceSMTP e-mail notification, NTP time synchronization, RSTP support, DHCP, PTP time synchronization
Communication Port SupportETHERNETscrew terminal block RS485mini B USB USB
Complementary Attributes
- Line Rated Current
- 1 A, 5 A, 10 A
Important Information Attributes
- Cybersecurity
- enable/disable communication ports, port hardening, Syslog protocol support, password protection, robust security logs
- Device Application
- revenue billing, WAGES metering, data aggregation, power monitoring
- Information Displayed
- voltage, current, frequency, power, energy consumption, harmonic distortion
- Measurement Accuracy
- current +/- 0.1 %, voltage +/- 0.1 %active energy +/- 0.2 %
- Number Of Poles
- + N, 3P, 1P + N
- Type Of Measurement
- apparent power per phase, rmspower factor per phase, rms, current, voltagefrequency total, active and reactive power total, apparent power total, power factor total, active and reactive power per phase, rms, active and reactive energy per phase, rms, apparent energy
- Certificate Agency
- CE, cULus, N998
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 1.530093881154107
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 32 kg CO2 eq., 32.04606541588121
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=PLSED310113EN_Web.pdf, PLSED310113EN
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1512006EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2333
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Product Kit Identifier
- N
- Display Type
- Without Display
- Frequency Measurement Range
- 42-69 Hz
- Measurement Current
- 50-10000 mA
- Memory Capacity
- 64 MB
- Mounting Support
- DIN rail
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- power meter
- Returnability
- No
- Software Version
- v6.3.2-2
- Total Lifecycle Carbon Footprint
- 237 kg CO2 eq.
- Pep Code
- ENVPEP1406022_V2
- Pep Verification Date
- 2025-11-28
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Canada, CA
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 12
- Width Nominal
- 90.5 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- 2.6586
Data Recordingtime stamping, trending/forecasting, waveform logs, sequence of event recording, min/max of instantaneous values, harmonics logs, data logs, sag and swell logs, GPS synchronisation, event logs, alarm logs, 10 data recorders
Electromagnetic Compatibilityelectrostatic discharge conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6, magnetic field at power frequency (2...150 Hz) conforming to IEC 61000-4-8voltage dips and interruptions immunity test conforming to IEC 61000-4-11immunity to impulse waves conforming to IEC 61000-4-12conducted and radiated emissions conforming to EN 55022, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to ICES-003, conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579surge withstand conforming to IEEE C37.90.1
Isolation VoltageIII400-690 V conforming to IEC 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
Network Frequency50 Hz, 60 Hz
Power Quality AnalysisEN 50160 2010 compliance reportIEEE 519 2014 compliance report, up to the 63rd harmonic, harmonic distortion, waveform capture, voltage sag and swell detection, programmablity (logic and math functions)IEC 62586 power quality monitoring
Web Servicescustomizable home page, file upload/download via FTP, file upload/download via SFTP, web server, alarm notification by e-mail, viewing of captured waveform (FTP), viewing of captured waveform (web), HTTPS server
Carbon Footprint Of The Distribution Phase [A4]0.5737616077149312, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.45060626220352684, 0.5 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]203 kg CO2 eq., 202.64310837690203
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Device Short NameION7403
Energy Efficiency OptimizedFalse
Installation CategoryIII
Measurement Voltage57-400 V AC 42...69 Hz between phase and neutral100-690 V AC 42...69 Hz between phases
Mounting Modeclip-on
Power Consumption In Va18 VA 415 V AC
Product NamePowerLogic ION7400
RangePowerLogic
Sampling Rate128 samples/cycle
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2025-04
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionThe functional unit of the PowerLogic PM8000 series is a high-precision power and energy meter designed for advanced monitoring and analysis. It operates with a low power consumption of 4.7 W in active mode and supports 100% runtime, with a total energy consumption of 411.72 kWh for active components for 10 years. It features robust cybersecurity with secure protocols (HTTPS, SFTP), Syslog support, and 50 configurable user accounts. With 512 MB memory, it supports 50 data logs, waveform captures, alarms, energy trends, and custom web pages. It offers precise event timestamping to ±1 ms using PTP, NTP, IRIG-B, GPS, and network time sync. The device includes 3 digital inputs, 1 digital output, and supports up to 4 I/O modules (relays, analog/digital I/Os). It operates in harsh environments (-25 to +70°C, 5–95% humidity, up to 3000 m altitude) and mounts via DIN rail with optional remote display.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh411.72
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal90.5 mm
[Us] Rated Supply Voltage90...415 V AC 45...65 Hz +/- 10 %110...415 V DC +/- 10 %
Package Weight(Lbs)854 g
Warranty (In Months)18
Customs Code9028300000
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 237.2436355438558
- Circularity Profile
- ENVEOLI1512006EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 %
- Pep Verification Date
- 2025-11-28
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Environmental DisclosureENVPEP1406022_V2
Ip Degree Of ProtectionIP30 conforming to IEC 60529
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1406022_V2
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- power meter
ETIM
- ETIM 8
- EC002301
ETIM 9EC002301
Output Attributes
- Number Of Outputs
- 1 pulse
Input Attributes
- Analogue Input Type
- voltage (impedance 5 MOhm)current (impedance 0.3 mOhm)
Number Of Inputs3 digital 30 V AC3 digital 60 V DC
