Schneider Electric METSEPM8344 Power quality meter, PowerLogic PM8000, Advanced, transducer and remote display, 512MB, 512s/c

  • MPN: METSEPM8344
  • PPN: SCH-METSEPM8344
  • UNSPSC: 41113708
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

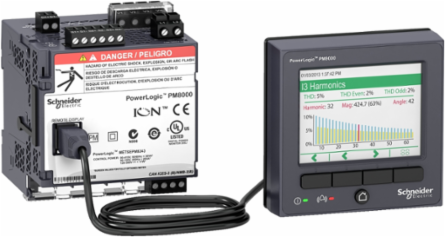

Power quality meter, PowerLogic PM8000, Advanced, transducer and remote display, 512MB, 512s/c

Features

  • Fast access to timely, critical information for energy, electrical network, and asset management
  • Help operations personnel avoid downtime by making power quality understandable
  • Makes energy and power quality actionable to support your op and sustainability goals
  • More detailed PQ compliance reporting, and expertlevel power quality and rootcause analytics
  • Forecasting to help ensure your electrical system avoid overloads, unbalances or high peak demand
  • Ensure energy efficiency and optimized costs by understanding how energy is being consumed
  • Perform subbilling or allocate cost to encourage energyefficient behavior, reduce PF penalities
  • Support participation in demand response or variable tariff (TOU, RTP) programs
  • Maximize use of capacity by performing load studies and infrastructure expansion planning
  • Patented ION Programming allows for full alarm/calc customization, control and more

Documentation & Downloads

Specifications

Key Specifications

Country of OriginCanada
Depth90.8 mm
Weight954 g

Communications & Management Attributes

Communication Port ProtocolModbus RTU 115 kbauds - 2-wire, ION 115 kbauds - 2-wire, DNP3, IEC 61850, Modbus TCP/IPEthernet Modbus TCP/IP daisy chain 10/100 Mbit/s, RSTP 801.1d 2004
Communication Network TypeIPv6 (internet protocol)
Communication ServiceSMTP e-mail notification, RSTP support, NTP time synchronization, DHCP, PTP time synchronization
Communication Port SupportETHERNETscrew terminal block RS485

Complementary Attributes

Line Rated Current10 A, 5 A, 1 A
Us Rated Supply Voltage90...415 V AC 45...65 Hz +/- 10 %110...415 V DC +/- 10 %

Important Information Attributes

Cybersecuritypassword protection, Syslog protocol support, port hardening, robust security logs, enable/disable communication ports
Device ApplicationWAGES metering, power monitoring
Information Displayedvoltage, current, frequency, power, energy consumption, harmonic distortion
Market Segmentbuildings large building network management: main incomerbuildings large building network management: sub feederbuildings multi-site network management: sub feederdata center large building network management: billing: sub feederhealthcare multi-site network management: sub feeder, industry network management: sub feeder, buildings large building cost management: billing: sub feeder, buildings small building network management: main incomer, buildings medium building network management: main incomer, buildings multi-site network management: main incomer, data center network management: main incomer, healthcare large building network management: main incomer, industry multi-site network management: main incomer, utility network management: sub feeder
Mounting Modeflush-mounted, clip-on
Number Of Poles3P, 1P + N, 3P + N
Type Of Measurementactive and reactive power per phase, rmsapparent power per phase, rmspower factor per phase, rms, current per phase, rms, voltage per phase, rms, frequency per phase, rmsactive and reactive power total, apparent power total, power factor total
Certificate AgencyCE, cULus, N998
Carbon Footprint Of The End Of Life Phase C1 To C42 kg CO2 eq., 1.9536485628896236
Carbon Footprint Of The Manufacturing Phase A1 To A3106 kg CO2 eq., 105.83081213852184
Local Data StatusPublishable
Return IndicatorY
ServiceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Compatibility CodePM8244
Display Resolution320 x 240 pixels QVGA
Energy Efficiency OptimizedFalse
Installation CategoryIII
Measurement Voltage57-400 V AC 42...69 Hz between phase and neutral100-690 V AC 42...69 Hz between phases
Mounting SupportDIN rail meter deviceframework remote display
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typepower meter
RangePowerLogic
Sampling Rate512 samples/cycle
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Sourceextrapolated product
Width Nominal90.5 mm
Customs Code9028300000
Functional Unit DescriptionTechnical data:& 10Supply Voltage& 1090...415 V AC 45...65 Hz +/- 10 %& 10110...415 V DC +/- 10 %& 10Measurement voltage& 1057…400 V AC 42...69 Hz between phase and neutral& 10100…690 V AC 42...69 Hz between phases& 10Measurement current& 1050…10000 mA
Functional Unit Unitunit
Energy Consumption On Product Lifetime In Kwh414.348
Data Recordingsequence of event recording, event logs, min/max of instantaneous values, harmonics logs, alarm logs, GPS synchronisation, waveform logs, data logs, time stamping, trending/forecasting, sag and swell logs, 64 data recorders
Electromagnetic Compatibilityelectrostatic discharge conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6magnetic field at power frequency conforming to IEC 61000-4-8voltage dips and interruptions immunity test conforming to IEC 61000-4-11immunity to impulse waves conforming to IEC 61000-4-12conducted and radiated emissions conforming to EN 55022, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to ICES-003conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579surge withstand conforming to IEEE C37.90.1
Isolation VoltageIII400-690 V conforming to IEC 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
Measurement Accuracycurrent +/- 0.1 %, voltage +/- 0.1 %active energy +/- 0.2 %
Network Frequency50 Hz, 60 Hz
Power Quality AnalysisEN 50160 2010 compliance reportIEEE 519 2014 compliance report, IEC 61000-4-30 class A power quality measurement, up to the 63rd harmonic, harmonic distortion, waveform captureIEC 62586 voltage sag and swell detectionIEC 61000-4-15 programmablity (logic and math functions), IEC 62586 2014 power quality monitoring, IEC 61000-4-30 class A disturbance direction detection, IEC 61000-4-15 flicker, rapid voltage change
Web Servicescustomizable home page, file upload/download via FTP, file upload/download via SFTP, web server, alarm notification by e-mail, viewing of captured waveform (FTP), viewing of captured waveform (web), HTTPS server
Carbon Footprint Of The Distribution Phase A40.41196366856875255, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.026756294739957012, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6199 kg CO2 eq., 199.2820090070477
Local Publishable Date2025-12-02
Device TypeRelay, Control & Measurement - measuring, monitoring device
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2508020EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2345
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Product Kit IdentifierN
Device Short NamePM8344
Display Typeremote LCD display
Frequency Measurement Range42-69 Hz
Measurement Current50-10000 mA
Memory Capacity512 MB
Power Consumption In Va16 VA 230 V AC
Product NamePowerLogic PM8000
Provided Equipmentremote display
ReturnabilityYes
Software Versionv6.2.4
Total Lifecycle Carbon Footprint308 kg CO2 eq.
Database Version2024-01
Height Nominal90.5 mm
Nbr. Of Units In Pkg.1
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y10
Recyclability Potential In %17

Environment Attributes Main

Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint307.5051896717679
Circularity ProfileENVEOLI2508020EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude9842.52 ft (3000 m)
Packaging Without Single Use PlasticNo
Relative Humidity5-95 %
Pep Verification Date2025-09-15
Psr VersionPSR-0005-ed3-2023 12 08
Take BackNo
China Rohs RegulationX
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Environmental DisclosureENVPEP2508020EN
Ip Degree Of ProtectionIP30 conforming to IEC 60529
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2508020EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review

General Attributes

Product Or Component Typepower meter
Provided Equipmentremote display

ETIM

ETIM 8EC002301
ETIM 10EC002301
ETIM 9EC002301

Output Attributes

Number Of Outputs1 pulse

Input Attributes

Analogue Input Typevoltage (impedance 5 MOhm)current (impedance 0.3 mOhm)
Number Of Inputs3 digital 30 V AC3 digital 60 V DC
Power quality meter, PowerLogic PM8000, Advanced, transducer and remote display, 512MB, 512s/c
