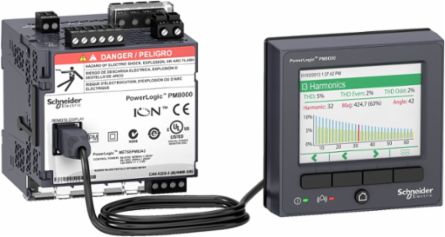

Schneider Electric METSEPM8314 Power quality meter, PowerLogic PM8000, transducer and remote display, 512MB, 512s/c
Schneider Electric METSEPM8314 Power quality meter, PowerLogic PM8000, transducer and remote display, 512MB, 512s/c
- MPN: METSEPM8314
- PPN: SCH-METSEPM8314
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Power quality meter, PowerLogic PM8000, transducer and remote display, 512MB, 512s/c
Specifications
Assets
- Cad
- https://download.schneider-electric.com/files?p_Doc_Ref=MCADDE0000238_3D-CAD&p_File_name=MCADDE0000238_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADDE0000238_3D-CAD&p_File_name=MCADDE0000238_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADDE0000238_3D-CAD&p_File_name=MCADDE0000238_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADDE0000238_3D-CAD&p_File_name=MCADDE0000238_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADDE0000238_3D-CAD&p_File_name=MCADDE0000238_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADDE0000238_3D-CAD&p_File_name=MCADDE0000238_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADDE0000238_3D-CAD&p_File_name=MCADDE0000238_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADDE0000238_3D-CAD&p_File_name=MCADDE0000238_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADDE0000238_3D-CAD&p_File_name=MCADDE0000238_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADDE0000238_3D-CAD&p_File_name=MCADDE0000238_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADDE0000238_3D-CAD&p_File_name=MCADDE0000238_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADDE0000238_3D-CAD&p_File_name=MCADDE0000238_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADDE0000238_3D-CAD&p_File_name=MCADDE0000238_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADDE0000238_3D-CAD&p_File_name=MCADDE0000238_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADDE0000238_3D-CAD&p_File_name=MCADDE0000238_2D-top.dxf
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU 115 kbauds - 2-wire, ION 115 kbauds - 2-wire, DNP3, IEC 61850, Modbus TCP/IP, Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s, RSTP 801.1d 2004
- Communication Service
- RSTP support, DHCP, SMTP e-mail notification, NTP time synchronization, SNMP, PTP time synchronization
Communication Port SupportETHERNET, screw terminal block RS485
Communication Network TypeIPv6 (internet protocol)
Conformance Attributes
- Product Certifications
- CE, cULus, N998
StandardsIEC 61557-12, IEC 62052-11, IEC 62053-24, IEC 62053-22, IEEE 1588, IEC 62586-2, IEC 61326-1
Complementary Attributes
- Line Rated Current
- 5 A, 1 A, 10 A
Us Rated Supply Voltage20...60 V DC +/- 10 %
Important Information Attributes
- Cybersecurity
- enable/disable communication ports, robust security logs, port hardening, password protection, Syslog protocol support
- Device Application
- power monitoring, WAGES metering
- Information Displayed
- voltage, current, frequency, power, energy consumption, harmonic distortion
- Market Segment
- buildings large building network management: main incomer, buildings large building network management: sub feeder, buildings multi-site network management: sub feeder, data center network management: sub feeder, healthcare network management: sub feeder, industry network management: sub feeder, buildings large building cost management: billing: sub feeder, buildings small building network management: main incomer, buildings medium building network management: main incomer, buildings multi-site network management: main incomer, data center network management: main incomer, healthcare network management: main incomer, industry network management: main incomer, utility: sub feeder
- Measurement Voltage
- 57-400 V AC 42...69 Hz between phase and neutral, 100-690 V AC 42...69 Hz between phases
- Mounting Support
- DIN rail meter device, framework remote display
- Poles Description
- 3P, 1P + N, 3P + N
- Type Of Measurement
- apparent power per phase, rms, power factor per phase, rms, current, voltage, frequency, active and reactive power total, apparent power total, power factor total, active and reactive power per phase, rms
- Carbon Footprint Of The Distribution Phase A4
- 0.41196366856875255, 0.4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.026756294739957012, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 199 kg CO2 eq., 199.2820090070477
- Local Data Status
- Publishable
- Global Commercial Status
- Commercialised
- Stocking Flag
- Y
- Serviceability
- No
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2508020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Product Kit Identifier
- N
- Display Type
- remote LCD display
- Frequency Measurement Range
- 42-69 Hz
- Measurement Current
- 50-10000 mA
- Power Consumption In W
- 18 W
- Product Name
- PowerLogic PM8000
- Provided Equipment
- remote display
- Returnability
- No
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 308 kg CO2 eq.
- Pep Code
- ENVPEP2508020EN
- Pep Verification Date
- 2025-09-15
- Psr Version
- PSR-0005-ed3-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- Width Nominal
- 90.5 mm
Data Recordingharmonics logs, waveform logs, trending/forecasting, event logs, alarm logs, data logs, sequence of event recording, sag and swell logs, min/max of instantaneous values, time stamping, GPS synchronisation, 50 data recorders
Electromagnetic Compatibilityelectrostatic discharge conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, electrical fast transient/burst immunity test conforming to IEC 61000-4-4, surge immunity test conforming to IEC 61000-4-5, conducted RF disturbances conforming to IEC 61000-4-6, magnetic field at power frequency conforming to IEC 61000-4-8, voltage dips and interruptions immunity test conforming to IEC 61000-4-11, immunity to impulse waves conforming to IEC 61000-4-12, conducted and radiated emissions conforming to EN 55022, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to ICES-003, conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579, surge withstand conforming to IEEE C37.90.1
Isolation VoltageIII400-690 V conforming to IEC 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3, III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
Measurement Accuracycurrent +/- 0.1 %, voltage +/- 0.1 %, active energy +/- 0.2 %
Mounting Modeclip-on, flush-mounted
Network Frequency50 Hz, 60 Hz
Power Quality AnalysisEN 50160 2010 compliance report, IEEE 519 2014 compliance report, IEC 61000-4-30 class A power quality measurement, up to the 63rd harmonic, harmonic distortion, waveform capture, voltage sag and swell detection, programmablity (logic and math functions), IEC 62586 power quality monitoring, disturbance direction detection, IEC 61000-4-15 flicker, rapid voltage change
Web Servicescustomizable home page, file upload/download via FTP, file upload/download via SFTP, web server, alarm notification by e-mail, viewing of captured waveform (FTP), viewing of captured waveform (web), HTTPS server
Carbon Footprint Of The End Of Life Phase C1 To C42 kg CO2 eq., 1.9536485628896236
Carbon Footprint Of The Manufacturing Phase A1 To A3106 kg CO2 eq., 105.83081213852184
Medium DescPower quality meter, PowerLogic PM8000, transducer and remote display, 512MB, 512s/c
Local Publishable Date2025-07-10
Return IndicatorN
Device TypeRelay, Control & Measurement - measuring, monitoring device
Legacy Weee ScopeIn
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeYes
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Display Resolution320 x 240 pixels QVGA
Energy Efficiency OptimizedFalse
Installation CategoryIII
Memory Capacity512 MB
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typepower meter
RangePowerLogic
Sampling Rate512 samples/cycle
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionTechnical data:& 10Supply Voltage& 1090...415 V AC 45...65 Hz +/- 10 %& 10110...415 V DC +/- 10 %& 10Measurement voltage& 1057…400 V AC 42...69 Hz between phase and neutral& 10100…690 V AC 42...69 Hz between phases& 10Measurement current& 1050…10000 mA
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; Canada, CA
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; United States, US
Height Nominal90.5 mm
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 307.5051896717679
- Circularity Profile
- ENVEOLI2508020EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 %
- Pep Verification Date
- 2025-09-15
- Psr Version
- PSR-0005-ed3-2023 12 08
Take BackNej
China Rohs RegulationX
Ambient Air Temperature For Storage-40-85 °C
Environmental DisclosureENVPEP2508020EN
Ip Degree Of ProtectionIP30 conforming to IEC 60529
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2508020EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- power meter
Provided Equipmentremote display
ETIM
- ETIM 8
- EC002301
ETIM 9EC002301
Output Attributes
- Number Of Outputs
- 1 pulse
Input Attributes
- Analogue Input Type
- voltage (impedance 5 MOhm), current (impedance 0.3 mOhm)
Number Of Inputs3 digital 30 V AC, 3 digital 60 V DC
Specifications
- Depth
- 90.8 mm
