Mersen MPDBC6667 UL 1953 Single Pole Power Distribution Block, Rated Voltage 1000V, Ampere Ratings: Al/Cu 0
- MPN: MPDBC6667
- UPC: 782001449346
- PPN: FER-MPDBC6667
CAD
$10.04
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Next Generation Power Distribution Block (PDB). Mersen power distribution blocks provide a safe and easy method of splicing cables, splitting primary power into secondary circuits and fulfilling requirements for fixed junction tap-off points. All blocks are UL and CSA approved while meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code®. PDB options include single or dual conductor primary inputs and up to 30 secondary outputs. Specialty blocks are available allowing for up to 7 primary inputs. The MPDB series is offered in three size categories: miniature (MPDB62 and MPDB63 series), intermediate (MPDB66 and MPDB67 series), and large (MPDB68 and MPDB69 series), in both aluminum and copper.
Features

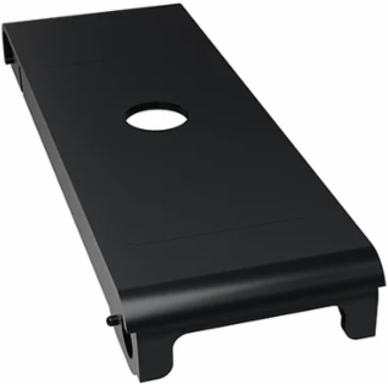

- This cover is custom-engineered exclusively for Mersen MPDB Intermediate Series open-style power distribution blocks (specifically the MPDB66 and MPDB67 series). Ensuring a precise mechanical match over the block chassis avoids gaps, preventing exposed live metal and ensuring a uniform fit across multi-pole terminal layouts.
- This polycarbonate safety shield provides robust dead-front protection, effectively preventing accidental knuckle or finger contact with energized components. Adding this cover allows your open-style distribution blocks to achieve touch-safe performance, helping your industrial control panels maintain compliance with strict UL508A and National Electrical Code (NEC) safety standards.
- Featuring a smart, snap-on hinged architecture, this cover attaches firmly to the distribution block base without requiring extra screws or assembly tools. The smooth-pivoting hinge allows field technicians to quickly swing the clear shield open for wire routing adjustments and snap it shut for instant re-protection.
- Designed with a built-in test probe port directly in the center of the face, this cover permits swift multi-meter diagnosis while remaining fully installed. Maintenance electricians can verify incoming and outgoing voltages safely and efficiently, minimizing live-exposure downtime during routine system audits.
Documentation & Downloads
Specifications
Key Specifications
- Rated voltage AC UL
- 1000 V
- Frequency (Hz)
- 50/60 Hz
- AC or DC
- AC/DC
- Width
- 1.85 in
- Height
- 0.08 in
Rated voltage DC UL1000 V
ROHS CompliantYes
Short Circuit Rating (Standalone)10 kA
Length5.7 in
Weight0.05 lb
