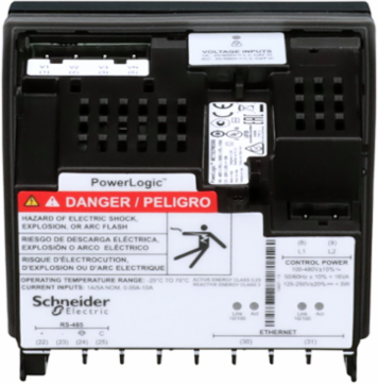

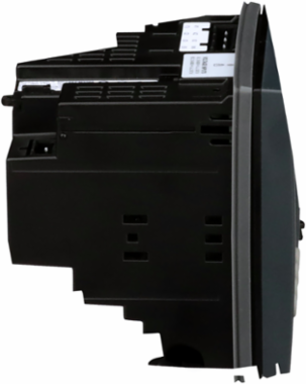

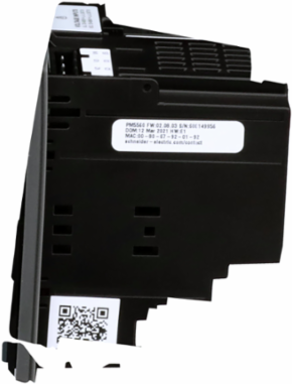

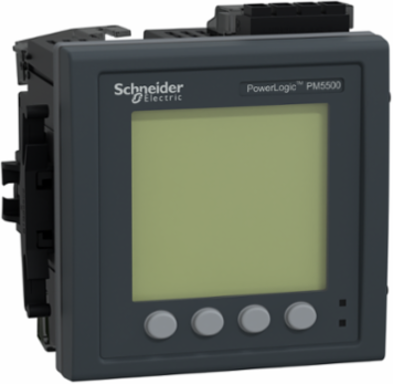

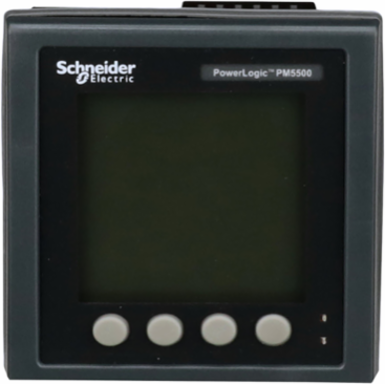

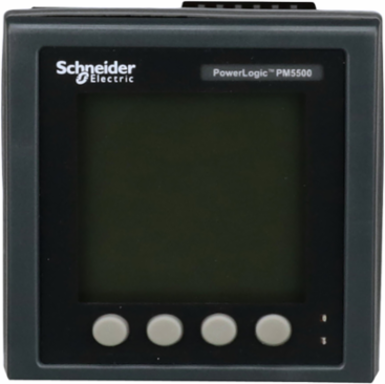

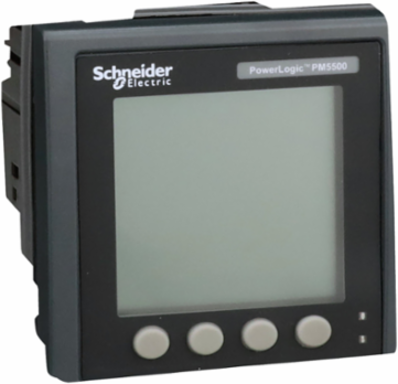

Schneider Electric METSEPM5560 Power Meter PowerLogic PM5560, 96mm x 96mm LCD, 1.1MB Memory, Up to 63rd Harmonic
- MPN: METSEPM5560
- PPN: SCH-METSEPM5560
CAD
$2256.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Power Meter PowerLogic PM5560, 96mm x 96mm LCD, 1.1MB Memory, Up to 63rd Harmonic
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Canada, Costa Rica, France, India, Singapore, United States
Depth72 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V, JBUSModbus TCP/IP 10/100 Mbit/s 2500 V, Ethernet Modbus TCP/IP daisy chain, BACnet IP, DNP3 over ethernet
- Communication Gateway
- Ethernet/serial
Communication Port SupportRS485, ETHERNET
Complementary Attributes
- Line Rated Current
- 1 A, 5 A
Maximum Power Consumption In Va16 VA 480 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Data Recording
- event logs, maintenance logs, min/max of instantaneous values, data logs, alarm logs, time stamping
- Electromagnetic Compatibility
- limits for harmonic current emissions class A conforming to IEC 61000-3-2, conducted RF disturbances level 3 conforming to IEC 61000-4-6, magnetic field at power frequency level 4 conforming to IEC 61000-4-8, conducted and radiated emissions class B conforming to EN 55022limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3, electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4surge immunity test level 4 conforming to IEC 61000-4-5voltage dips and interruptions immunity test conforming to IEC 61000-4-11
- Market Segment
- buildings medium building cost management: billing: sub feederbuildings large building cost management: billing: sub feederbuildings multi-site cost management: billing: sub feederdata center cost management: billing: sub feederhealthcare cost management: billing: sub feederindustry cost management: billing: sub feederbuildings small building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feederdata center cost management: cost allocation: main incomerdata center cost management: cost allocation: sub feederhealthcare cost management: cost allocation: main incomerhealthcare cost management: cost allocation: sub feederindustry cost management: cost allocation: main incomerindustry cost management: cost allocation: sub feederbuildings small building network management: sub feederbuildings medium building network management: main incomerbuildings medium building network management: sub feederbuildings large building network management: sub feederbuildings multi-site network management: sub feeder, data center network management: sub feeder, healthcare network management: sub feeder, industry network management: sub feederbuildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing: main incomer, healthcare cost management: billing: main incomer, industry cost management: billing: main incomer, buildings small building cost management: cost allocation: main incomer, buildings small building network management: main incomer
- Measurement Voltage
- 20-400 V AC 45...65 Hz between phase and neutral, 20-828 V AC 45...65 Hz between phases
- Network Frequency
- 60 Hz, 50 Hz
- Type Of Measurement
- current, voltage, frequency, power factor, energy, active and reactive power
- Certificate Agency
- CE conforming to IEC 61010-1cULus conforming to UL 61010-1, BTL
- Connections - Terminals
- voltage circuit screw terminal block4control circuit screw terminal block2current transformer screw terminal block6, RS485 link screw terminal block4digital input screw terminal block8, digital output screw terminal block4Ethernet network RJ45 connector2
- Carbon Footprint Of The Distribution Phase [A4]
- 0.2602891860986375, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.04790725285551408
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 290 kg CO2 eq., 290.0164920649822
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- DPIBS
- Service Catalog Item
- Finished good
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- PM5560
- Display Type
- Backlit LCD
- Frequency Measurement Range
- 45-65 Hz
- Measurement Current
- 50-10000 mA
- Mounting Mode
- flush-mounted
- Power Quality Analysis
- up to the 63rd harmonic
- Product Name
- PowerLogic PM5000
- Range
- PowerLogic
- Sampling Rate
- 128 samples/cycle
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- PM5560 is a power and energy meter that provides functions such as measuring electrical parameters, monitoring power quality and enabling energy management during the lifetime of 15 years. It helps users analyze and optimize energy usage while ensuring power quality and reliability.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; India, IN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 7
- Width Nominal
- 96 mm
- Package Weight(Lbs)
- 598.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationResidential, Commercial, Industrial
Device Applicationgateway, WAGES metering, power monitoring, multi-tariff
Ethernet ServiceSNTP client, SNMP-Traps
Measurement Accuracyapparent power +/- 0.5 %frequency +/- 0.05 %active energy +/- 0.2 %reactive energy +/- 1 %, active power +/- 0.2 %voltage +/- 0.1 %power factor +/- 0.005current +/- 0.15 %, reactive power +/- 1 %
Metering Typemeasured neutral current, calculated ground current
Number Of Poles+ N, 3P, 1P + N
Web Servicesalarm notification by e-mail, diagnostic via predefined web pages, web server, real time viewing of data
[Us] Rated Supply Voltage100...300 V DC, 90...528 V AC 45...65 Hz
Ride-through Time35 ms 120 V AC typical129 ms 230 V AC typical, 50 ms 125 V DC typical
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.30105727497212, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]36 kg CO2 eq., 36.00183342241951
Other Technical Guidehttps://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, PLSED310197EN_Web, PLSED310198EN_Web
Local Publishable Date2025-06-18
Stocking FlagN
Device TypeRelay, Control & Measurement - measuring, monitoring device
TraceabilityYes
Average Life Duration15 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1310016_V2
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2004
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodePM5560
Display Resolution128 x 128 pixels
Energy Efficiency OptimizedFalse
Information Displayedtariff 8)
Memory Capacity1.1 MB
Mounting Supportframework
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typepower meter
ReturnabilityYes
Software Versionv6.2.4
Total Lifecycle Carbon Footprint328 kg CO2 eq.
Pep CodeENVPEP1310016_V2
Pep Verification Date2025-07-29
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y15
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2020; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2020; Europe, EU-27
Height Nominal96 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9028300000
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 327.62757920132793
- Circularity Profile
- ENVEOLI1310016_V2
- Eu Rohs Directive
- Compliant
- Operating Altitude
- <= 9842.52 ft (3000 m)<= 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 % 50-50 °C non-condensing
- Pep Verification Date
- 2025-07-29
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Environmental DisclosureENVPEP1310016_V2
Ip Degree Of ProtectionIP54 display: conforming to IEC 60529IP30 rear: conforming to IEC 60529
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1310016_V2
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- power meter
ETIM
- ETIM 8
- EC002301
ETIM 9EC002301
Output Attributes
- Number Of Outputs
- 2 digital
Input Attributes
- Analogue Input Type
- voltage (impedance 5 MOhm)current (impedance <= 0.3 mOhm)
Number Of Inputs4 digital
