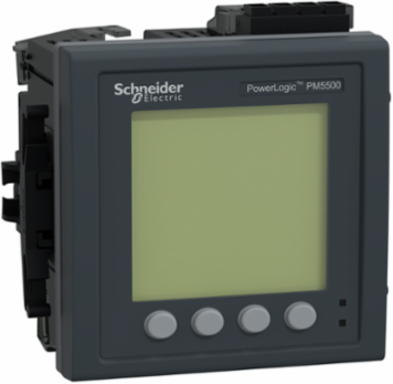

PowerLogic PM5562 Energy Meter, 96mm LCD, 100-480VAC, 4DI/2DO
Schneider Electric

Schneider Electric METSEPM5562 PowerLogic PM5562 Energy Meter, 96mm LCD, 100-480VAC, 4DI/2DO

  • MPN: METSEPM5562
  • PPN: SCH-METSEPM5562

CAD

$2267.91

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

PowerLogic PM5562 Energy Meter, 96mm LCD, 100-480VAC, 4DI/2DO

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
India, United States
Depth72 mm

Communications & Management Attributes

Communication Port Protocol
Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V, JBUS, Modbus TCP/IP 10/100 Mbit/s 2500 V, Ethernet Modbus TCP/IP daisy chain, BACnet IP
Communication Gateway
Ethernet/serial
Communication Port SupportRS485, ETHERNET

Complementary Attributes

Line Rated Current
1 A, 5 A
Maximum Power Consumption In Va10 VA 480 V

Important Information Attributes

Persona Type Ids
EU, LC, OM, OM8, PB, SI
Market Segmentation Id
RESIDENTIAL, COMMERCIAL, INDUSTRIAL
Data Recording
event logs, maintenance logs, min/max of instantaneous values, data logs, alarm logs, time stamping
Electromagnetic Compatibility
limits for harmonic current emissions class A conforming to IEC 61000-3-2, conducted RF disturbances level 3 conforming to IEC 61000-4-6, magnetic field at power frequency level 4 conforming to IEC 61000-4-8, conducted and radiated emissions class B conforming to EN 55022, limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3, electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, surge immunity test level 4 conforming to IEC 61000-4-5, voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Market Segment
buildings medium building cost management: billing: sub feeder, buildings large building cost management: billing: sub feeder, buildings multi-site cost management: billing: sub feeder, data center cost management: billing: sub feeder, healthcare cost management: billing: sub feeder, industry cost management: billing: sub feeder, buildings small building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, data center cost management: cost allocation: main incomer, data center cost management: cost allocation: sub feeder, healthcare cost management: cost allocation: main incomer, healthcare cost management: cost allocation: sub feeder, industry cost management: cost allocation: main incomer, industry cost management: cost allocation: sub feeder, buildings small building network management: sub feeder, buildings medium building network management: main incomer, buildings medium building network management: sub feeder, buildings large building network management: sub feeder, buildings multi-site network management: sub feeder, data center network management: sub feeder, healthcare network management: sub feeder, industry network management: sub feederbuildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing: main incomer, healthcare cost management: billing: main incomer, industry cost management: billing: main incomer, buildings small building cost management: cost allocation: main incomer, buildings small building network management: main incomer
Measurement Voltage
20-400 V AC 45...65 Hz between phase and neutral, 20-828 V AC 45...65 Hz between phases
Network Frequency
60 Hz, 50 Hz
Tamperproof Of Settings
RMICAN protected, hardware lock by jumper
Web Services
alarm notification by e-mail, diagnostic via predefined web pages, web server, real time viewing of data
[Us] Rated Supply Voltage
100...300 V DC, 90...528 V AC 45...65 Hz
Ride-through Time
35 ms 120 V AC typical, 129 ms 230 V AC typical
Carbon Footprint Of The End-of-life Phase [C1 To C4]
1 kg CO2 eq., 1.2597226262967578
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
35 kg CO2 eq., 34.85805354061798
Other Technical Guide
https://download.schneider-electric.com/files?p_Doc_Ref=PLSED310197EN_Web&p_File_name=PLSED310197EN_Web.pdf, https://download.schneider-electric.com/files?p_Doc_Ref=PLSED310198EN_Web&p_File_name=PLSED310198EN_Web.pdf, PLSED310197EN_Web, PLSED310198EN_Web
Local Publishable Date
2025-06-18
Stocking Flag
Y
Device Type
Relay, Control & Measurement - measuring, monitoring device
Traceability
Yes
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI1310016_V2
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2004
China Rohs In Scope
Yes
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier Id
3
Function Option Id
STANDARD
Product Kit Identifier
N
Device Short Name
PM5562
Display Type
Backlit LCD
Frequency Measurement Range
45-65 Hz
Measurement Current
50-10000 mA
Mounting Mode
flush-mounted
Power Quality Analysis
up to the 63rd harmonic
Product Name
PowerLogic PM5000
Range
PowerLogic
Sampling Rate
128 samples/cycle
Total Lifecycle Carbon Footprint
326 kg CO2 eq.
Pep Code
ENVPEP1310016_V2
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent external review
Functional-unit Description
PM5560 is a power and energy meter that provides functions such as measuring electrical parameters, monitoring power quality and enabling energy management during the lifetime of 15 years. It helps users analyze and optimize energy usage while ensuring power quality and reliability.
Functional-unit Unit
Unit
Energy Consumption On Product Lifetime, In Kwh
466.47
Energy Model - Installation [A5]
Electricity origin
Energy Model - End Of Life [C1-c4]
Electricity origin
Height Nominal
96 mm
Nbr. Of Units In Pkg.
1
Take-back
No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationResidential, Commercial, Industrial
Device Applicationgateway, WAGES metering, power monitoring, multi-tariff
Ethernet ServiceSNTP client, SNMP-Traps
Measurement Accuracyapparent power +/- 0.5 %, frequency +/- 0.05 %, active energy +/- 0.2 %, reactive energy +/- 1 %, active power +/- 0.2 %, voltage +/- 0.1 %, power factor +/- 0.005, current +/- 0.15 %
Metering Typemeasured neutral current, calculated ground current
Number Of Poles3P + N, 3P, 1P + N
Type Of Measurementcurrent, voltage, frequency, power factor, energy, active and reactive power
Certificate AgencyCE conforming to IEC 61010-1, cULus conforming to UL 61010-1, BTL
Connections - Terminalsvoltage circuit screw terminal block4, control circuit screw terminal block2, current transformer screw terminal block6, RS485 link screw terminal block4, digital input screw terminal block8, digital output screw terminal block4, Ethernet network RJ45 connector2
Carbon Footprint Of The Distribution Phase [A4]0.25201978684285625, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.046385237257986406, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]290 kg CO2 eq., 290.01649206498223
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityYes
Field Service DivisionDPIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier3
Function OptionStandard
Compatibility CodePM5562
Display Resolution128 x 128 pixels
Energy Efficiency OptimizedFalse
Information Displayedtariff 8)
Memory Capacity1.1 MB
Mounting Supportframework
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typepower meter
ReturnabilityYes
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Verification Date2025-07-29
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y15
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; India, IN
Energy Model - Use [B6]Electricity origin
Recyclability Potential, In %7
Width Nominal96 mm
Package Weight(Lbs)0.64 kg
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Storage
-40-85 °C, -40-85 °C
Take Back
No
China Rohs Regulation
X
Mercury Free
Yes
Ambient Air Temperature For Operation
-25-70 °C-25-70 °C
Environmental Disclosure
ENVPEP1310016_V2
Operating Altitude
9842.52 ft (3000 m)
Packaging Without Single Use Plastic
No
Relative Humidity
5-95 % 50-50 °C non-condensing
Pep Verification Date
2025-07-29
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Ip Degree Of ProtectionIP54 display: conforming to IEC 60529, IP30 rear: conforming to IEC 60529
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint326.4326732559978
Circularity ProfileENVEOLI1310016_V2
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1310016_V2
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review

General Attributes

Product Or Component Type
power meter

ETIM

ETIM 8
EC002301
ETIM 9EC002301

Output Attributes

Number Of Outputs
2 digital

Input Attributes

Analogue Input Type
voltage (impedance 5 MOhm), current (impedance <= 0.3 mOhm)
Number Of Inputs4 digital
