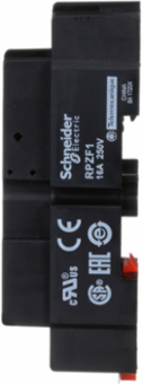

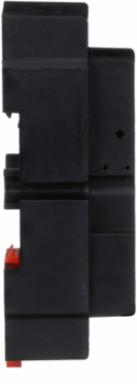

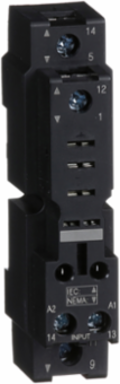

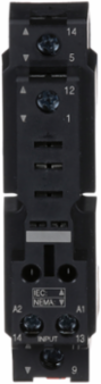

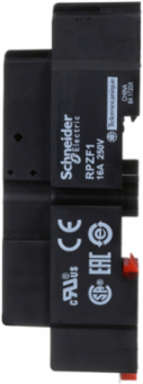

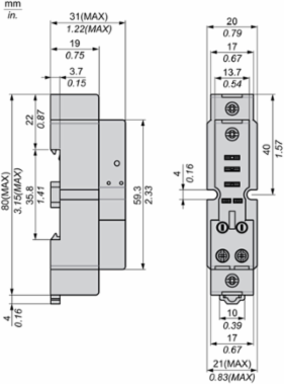

Schneider Electric RPZF1 Harmony Electromechanical Relay Socket, 16A, 250V AC, Mixed Contact

  • MPN: RPZF1
  • PPN: SCH-RPZF1
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $13.80

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Harmony Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Harmony plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Harmony plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Harmony plug in relays are UL Listed. "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0

    Features

    • Featuring a slim, compact profile with an integrated 35mm DIN rail latch, this socket is engineered for high-density panel mounting. Its narrow footprint allows you to maximize internal enclosure space, making it an ideal choice for complex automation builds or retrofitting existing motor control centers where rail real estate is at a premium.
    • Built with robust, top-facing screw clamp terminals, this socket accommodates wire sizes from 20 AWG to 14 AWG, providing a gas-tight seal for your control wiring. The organized terminal layout simplifies field wiring and reduces installation labor time, ensuring your commercial HVAC or automation project stays on schedule and meets strict UL/CSA torque specifications.
    • This socket features a dedicated built-in area for snap-in identification tags and clear terminal marking. By allowing for precise circuit labeling at the source, it streamlines maintenance tasks and allows technicians to instantly identify the correct relay for testing or replacement, significantly lowering mean-time-to-repair (MTTR) in industrial environments.
    • Fully compliant with CE, UL, and CSA safety standards, the RPZF1 is rated for 16 Amps at 250V, ensuring it can safely handle industrial-grade switching loads. This certification guarantees that your electrical assemblies pass rigorous local inspections and provide a long-lasting, fire-resistant interface for your critical control systems.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, China, France, Singapore, United States

    Complementary Attributes

    Line Rated Current
    16 A

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Tightening Torque
    < 1 N.m M3.5, < 1 N.m M3.5, < 0.8 N.m M3, < 0.8 N.m M3< 1 N.m M3.5, < 1 N.m M3.5, < 0.8 N.m M3, < 0.8 N.m M3
    Connections - Terminals
    contact terminal - , 1 wire flexible with cable end 0.5...2.5 mm² / 20 AWG...14 AWGcoil terminal - , 1 wire solid without cable end 0.5...2.5 mm² / 20 AWG...14 AWGcoil terminal - , 1 wire flexible with cable end 0.5...1.5 mm² / 20 AWG...16 AWGscrew clamp terminals, contact terminal - screw clamp terminals, 2 wires solid without cable end 0.5...4 mm² / 20 AWG...12 AWG, contact terminal - screw clamp terminals, 1 wire solid without cable end 0.5...4 mm² / 20 AWG...12 AWGcontact terminal - screw clamp terminals, 2 wires flexible with cable end 0.5...2.5 mm² / 20 AWG...14 AWG, coil terminal - screw clamp terminals, 2 wires solid without cable end 0.5...2.5 mm² / 20 AWG...14 AWGcoil terminal - screw clamp terminals, 2 wires flexible with cable end 0.5...1.5 mm² / 20 AWG...16 AWG
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0 kg CO2 eq., 0.0034384
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.3 kg CO2 eq., 0.34488
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Compatibility Code
    RPZ
    Contacts Type And Composition
    1 C/O
    Dielectric Strength
    2500 V
    Group Of Product
    RPM_1_C/O_SC_TER_MIX_FLAT
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    Harmony Electromechanical Relays
    Software Version
    EIME v5.8.1
    Total Lifecycle Carbon Footprint
    0.4 kg CO2 eq.
    Database Version
    2016-11
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    RPZF1 is a socket that can be mounted with RPM1 plug in relays and protect persons during 20 years with the following dimensions 80mm x 31mm x 21mm.
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    Energy model used: China
    Energy Model - Use [B6]
    Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Recyclability Potential In %
    91
    [Ue] Rated Operational Voltage
    250 V
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Air Pollution (M3) Total Life Cycle
    54.636
    Air Pollution (M3) End Of Life [C1-c4]
    0.3172
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
    3.1901
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    5.3317
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
    5.5728
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    0.6245
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    4.7072
    Water Pollution (M3) Manufacturing [A1-a3]
    13.419
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Certificate AgencyCSA, UL, EAC, CE
    Carbon Footprint Of The Distribution Phase [A4]0.0046291, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.00027513, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
    Local Publishable Date2026-03-26
    Stocking FlagN
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Contact Terminal Arrangementmixed
    Device Short NameRPZ
    Fixing Modeby screw (panel)clip-on (35 mm symmetrical DIN rail)
    Overvoltage CategoryIII
    Product Or Component Typesocket
    ReturnabilityYes
    Sustainable PackagingYes
    Pep CodeENVPEP2506024EN
    Pep Verification Date2020-11-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourcereferent product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
    [Ith] Conventional Free Air Thermal Current16 A
    [Uimp] Rated Impulse Withstand Voltage4 kV
    Package Weight(Lbs)30 g
    Warranty (In Months)18
    Air Pollution (M3) Manufacturing [A1-a3]54.111
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle3.2946
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle5.4453
    Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle5.6865
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle0.6245
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle4.8208
    Water Pollution (M3) Total Life Cycle14.573
    Customs Code8536698000

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-55 °C, -40-55 °C
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    0.35322
    Eu Rohs Directive
    Compliant
    Packaging Made With Recycled Cardboard
    Yes
    Product Compatibility
    plug-in relay RPM 1 C/O
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Pep Verification Date
    2020-11-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Environmental DisclosureENVPEP2506024EN
    Ip Degree Of ProtectionIP20 conforming to IEC 60529
    Packaging Without Single Use PlasticYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2506024EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    socket
    Range Of ProductHarmony Electromechanical Relays

    ETIM

    ETIM 8
    EC001456
    ETIM 9EC001456

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
    Loading video…

    Accessories

    Loading carousel layout...

    Similar Products

    Loading carousel layout...

    CAD$13.80/ EA

    Loading add to cart quantity...
