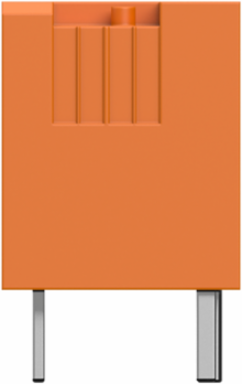

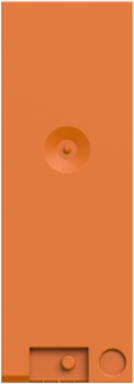

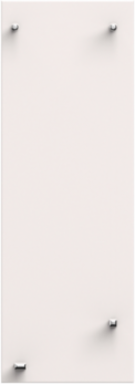

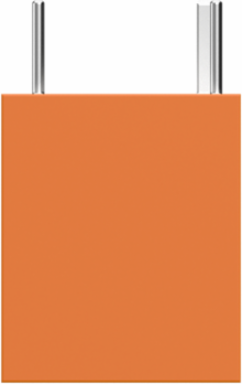

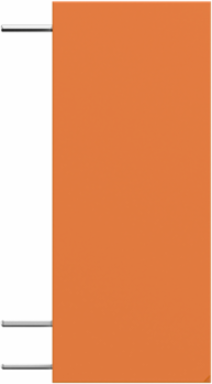

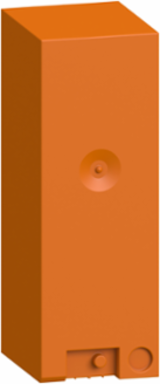

Schneider Electric ABR7S21 Modicon 24V DC Plug-In Electromechanical Relay, 1 NO Contact, 10 mm Width
- MPN: ABR7S21
- PPN: SCH-ABR7S21
CAD
$11.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon ABE7 range, an offer of plug-in electromechanical relays. The plug-in power relay has 1 NO contact with 5A conventional free air thermal current. It is an electromechanical relay with a control circuit voltage of 24V. It offers electrical durability of about 5,00,000 cycles and mechanical durability of about 20 million cycles. The width of this product is 10mm. It weighs 0.008kg. It is suitable for all types of industrial applications. It is compatible with ABE7P16T212, ABE7P16T214, ABE7P16T210, ABE7P16T230E, ABE7R16T210, ABE7R16T212, ABE7P16T215 and ABE7P16T230. It is sold in a set of 4. The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Japan, Latvia
Complementary Attributes
- Maximum Switching Voltage
- 130 V DC IEC 60947-5-1, 250 V AC 50/60 Hz IEC 60947-5-1
- Maximum Power Dissipation Per Pole
- 0.36 W
Control Circuit TypeDC
Minimum Switching Current10 mA >= 5 V
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electrical Durability
- 500000 cycles 1500 mA 230 V AC-12500000 cycles 1500 mA 24 V DC-12, 500000 cycles 600 mA 24 V DC-13 10 ms500000 cycles 900 mA 230 V AC-15
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Associated Fuse Rating
- 1 A, fast blow
- Dielectric Strength
- 2000 V IEC 60947-1
- Max Immunity To Microbreaks
- 5 ms
- Operating Rate In Hz
- 10 Hz no load0.5 Hz at Ie
- Product Or Component Type
- plug-in electromechanical relay
- Range Of Product
- Advantys Telefast ABE7
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width Nominal
- 10 mm
- [Uc] Control Circuit Voltage
- 24 V
- Drop-out Current
- 1 mA 20 °C
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536410020
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Contacts Type And Composition1 NO
Electrical Reliability1e-008
Mechanical Durability20000000 cycles
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 4
ReturnabilityYes
Threshold Tripping Voltage19.7 V 40 °C
Width Pitch Dimension10 mm
[Ith] Conventional Free Air Thermal Current5 A
[Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
Drop-out Voltage2.4 V 20 °C
Package Weight(Lbs)8.000 g
Warranty (In Months)18
Environment Attributes Main
- Product Compatibility
- ABE7P16T212, ABE7P16T214, ABE7P16T210, ABE7P16T230E, ABE7R16T210, ABE7R16T212, ABE7P16T215, ABE7P16T230
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- plug-in electromechanical relay
Range Of ProductAdvantys Telefast ABE7
ETIM
- ETIM 8
- EC001652
ETIM 9EC001652
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
