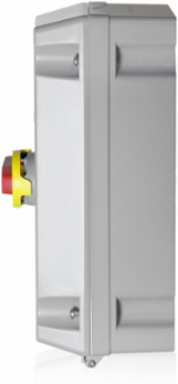

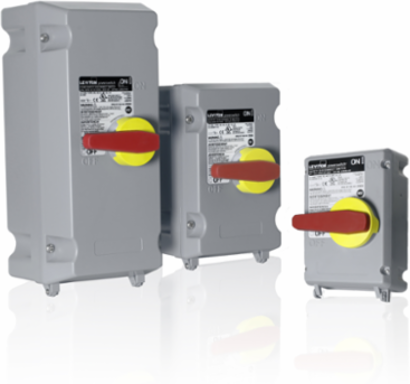

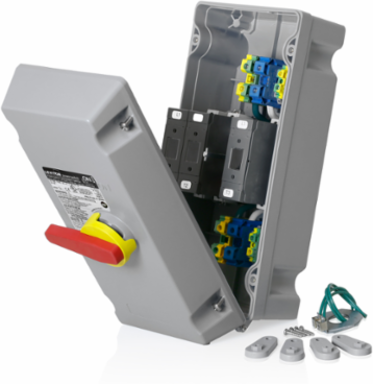

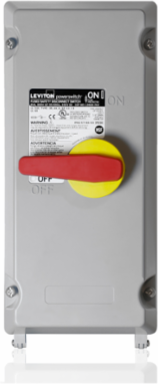

Leviton LDS60-FAX 60 Amp Fused PowerSwitch Disconnect Switch, 600 Volt, Non-Metallic Enclosure
- MPN: LDS60-FAX
- UPC: 078477767986
- PPN: LEV-LDS60-FAX
CAD
$1201.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
60 Amp Fused PowerSwitch Disconnect Switch, 600 Volt, Non-Metallic Enclosure
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- Amperage
- 60 A
- Current Interrupting
- Certified for full-rated current and voltage
- Endurance
- 6,000 operating cycles at rated current and voltage
- ISO
- 20653
- NEMA
- 250
- NSF
- 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
- Voltage
- 600 VAC
CECE Marked
Dielectric Voltage1000 V plus twice rated voltage for 1 minute
IEC60529
Ingress ProtectionNEMA/UL 50E Type 3R, 4, 4X, 6, 6P, 12, 13 IEC IP66, IP67, IP68, IP69 IP69K
NOMNOM-ANCE
Short Circuit Current Rating200 kA; Fuse Type J; Fuse Size 60A
cULusUL98 (Suitable for Motor Circuits)
Material Specifications
- Enclosure Material
- PBT+PC
- Gasket
- Silicone Rubber
- Mounting Feet
- PBT+PC
- Terminal Accom.
- 14 - 4 AWG
Enclosure ScrewsStainless Steel
Handle MaterialPBT+PC with TPE Overmold
Product IDRatings are permanently marked on device
Terminal IDIn accordance with UL and international conventions
Mechanical Specifications
- CE
- CE Marked
- ISO
- 20653
- NOM
- NOM-ANCE
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- In accordance with UL and international conventions
IEC60529
NEMA250
NSF14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
Terminal Accom.14 - 4 AWG
cULusUL98 (Suitable for Motor Circuits)
Warranty
- Warranty
- 3-Year Limited
Environmental Specifications
- Enclosure Material
- PBT+PC
- Gasket
- Silicone Rubber
- Mounting Feet
- PBT+PC
- UV Resistance
- Exposed materials are UV stabilized
Enclosure ScrewsStainless Steel
Handle MaterialPBT+PC with TPE Overmold
Operating Temperature-40°C to 75°C
Electrical Specifications
- Amperage
- 60 A
- Dielectric Voltage
- 1000 V plus twice rated voltage for 1 minute
- Operating Temperature
- -40°C to 75°C
- UV Resistance
- Exposed materials are UV stabilized
Current InterruptingCertified for full-rated current and voltage
Endurance6,000 operating cycles at rated current and voltage
Short Circuit Current Rating200 kA; Fuse Type J; Fuse Size 60A
Voltage600 VAC
