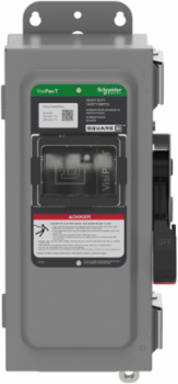

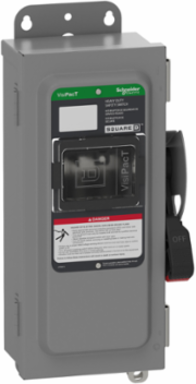

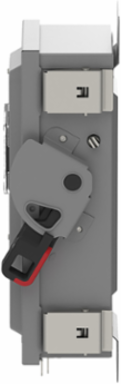

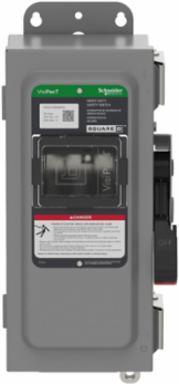

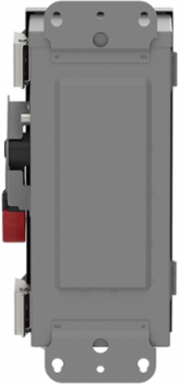

Schneider Electric VH361AWKGL Heavy Duty Safety Switch 600V 30A 3-Pole NEMA 12
- MPN: VH361AWKGL
- PPN: SCH-VH361AWKGL
- UNSPSC: 39122205
CAD
$759.32
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The VH361AWKGL Heavy Duty Safety Switch from Schneider Electric is designed to provide a robust and reliable solution for power distribution needs. With a voltage rating of 600V and a current rating of 30A, this three-pole switch ensures efficient performance in industrial and commercial applications. Its NEMA 12 enclosure offers protection against dust and moisture, making it suitable for use in environments where reliability is crucial. This safety switch is engineered for dependable operation, allowing for safe disconnection of electrical circuits while ensuring the utmost safety in power handling.
Features
- The Schneider Electric Square D VH361AWKGL is a premium 30-Amp, 3-Pole, 600V AC Heavy-Duty Safety Switch. As a "Heavy Duty" (Type DH) model, it is engineered for the most demanding Canadian industrial and commercial environments, providing a reliable, visible means of disconnect for high-voltage machinery and motor circuits.
- This unit is housed in a NEMA 3R/12/4X stainless steel enclosure, providing ultimate protection against windblown dust, rain, splashing water, and hose-directed water. This makes it the ideal choice for Canadian food processing plants, wastewater treatment facilities, and outdoor industrial sites where corrosion resistance is a top priority.
- The "GL" suffix indicates that this specific model comes with a factory-installed grounding kit. This saves significant installation time for electricians by eliminating the need to source and mount a separate ground lug in the field, ensuring the enclosure is properly bonded and safe from the moment it is wired.

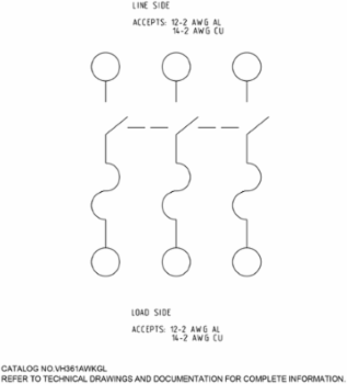

- This is a fusible safety switch designed to hold Class H, K, J, or R fuses. When equipped with the appropriate fuse kit, it provides critical overcurrent protection. Its high-performance design supports a Short-Circuit Current Rating (SCCR) of up to 200kA when used with Class J or R fuses, meeting the highest safety standards for modern industrial panels.
- The "W" in the part number signifies the inclusion of a View window. This allows maintenance personnel to visually verify the position of the internal blades (Open or Closed) without opening the door and exposing themselves to live electrical parts. This is a critical feature for complying with CSA Z462 safety protocols and reducing arc flash risk.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|

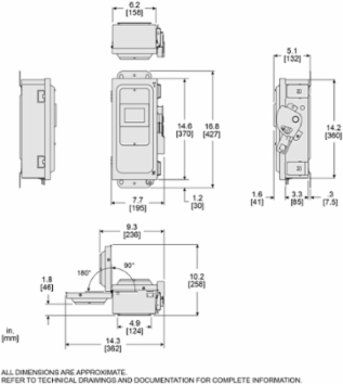

| Depth | 5.195 in |
| Weight | 5000 g |
|---|
Complementary Attributes
| Line Rated Current | 30 A |
|---|
| Ue Rated Operational Voltage | 600 V AC/DC |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Fuse Type | H or K, R or J |
| Tightening Torque | 45-45 lbf.in 13.3-13.3 mm² (6 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG), 35-35 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG) |
| Carbon Footprint Of The Distribution Phase A4 | 1.4412600645878026, 1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.16988377212236652, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 3 kg CO2 eq., 3.248016280353195 |
| Local Publishable Date | 2026-09-05 |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Services | factory installation |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Height Nominal | 14.57 in |
| Certificate Agency | UL listed file E2875 |
| Customs Code | 8536509045 |
| Functional Unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 83 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Motor Power Hp | 5 hp at 480 V AC 50-60 Hz for 3 phase motors, 15 hp at 480 V AC 50-60 Hz for 3 phase motors7.5 hp at 600 V AC 50-60 Hz for 3 phase motors, 20 hp at 600 V AC 50-60 Hz for 3 phase motors, 15 hp at 600 V DC |
| Short Circuit Current | 10 kA for H, K, J or R without fuse rejection clips, 200 kA for R with fuse rejection clips, 200 kA for J |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 12 kg CO2 eq., 11.517275059656443 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 29 kg CO2 eq., 29.344468449033375 |
| Local Data Status | Publishable |
| Pre Comm Date | 2023-04-05 |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2530 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 12 AWG...6 AWG aluminium14 AWG...6 AWG copper |
| Device Composition | field installed kit available |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 46 kg CO2 eq. |
| Wiring Configuration | 3-wire |
| Data Source | extrapolated product |
| Width Nominal | 6.48 in |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 45.72090362575318 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2303036EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2303036EN |
| Nema Degree Of Protection | NEMA 12 galvannealed steel |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
