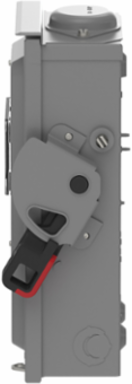

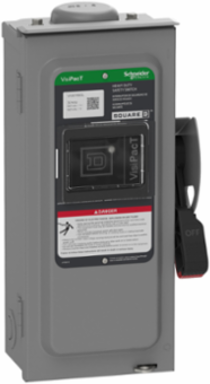

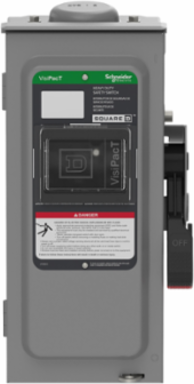

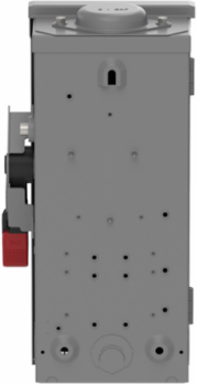

Square D VH361RBGL Heavy Duty Fused Safety Switch, 600V, 30A, 3-Pole, NEMA 3R
- MPN: VH361RBGL
- PPN: SCH-VH361RBGL
CAD
$687.57
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This heavy-duty fused safety switch from Schneider Electric is engineered to enhance safety and reliability in electrical systems. Rated for 600V and 30A, it features a three-pole configuration, making it suitable for a variety of industrial applications. Designed with a NEMA 3R enclosure, the switch provides protection against rain and external moisture, ensuring its durability in harsh conditions. This essential component not only facilitates safe disconnection but also helps in maintaining the overall integrity of your electrical installations.
Features

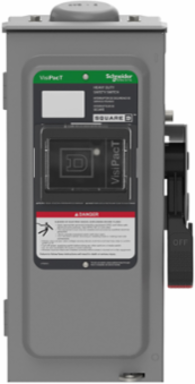

- Part of the next-generation VisiPacT series, this heavy-duty disconnect features a factory-installed glass viewing window on the front cover. This allow field engineers and maintenance crews to instantly verify the physical position of the switch blades at a glance while keeping the door fully sealed, significantly enhancing workplace safety by minimizing potential exposure to live arc flash hazards.
- Housed in a NEMA 3R galvannealed steel enclosure, this safety switch is engineered specifically to prevent the ingress of rain, sleet, snow, and external ice formation. It provides maximum component protection for demanding outdoor applications, making it the perfect choice for isolating power to rooftop HVAC units, conveyor systems, and commercial water pumps exposed to varying Canadian climates.

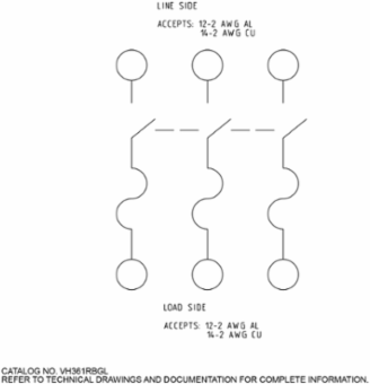

- This 3-pole, 3-wire single-throw safety switch is fully rated for 30 A at up to 600V AC/DC. Depending on the class of fuses installed, it delivers a short-circuit current rating (SCCR) ranging from 10 kA for standard Class H/K fuses all the way up to an exceptional 200 kA when paired with Class R or Class J fuse rejection clips, ensuring robust overcurrent containment for high-fault utility connections.
- The "GL" suffix confirms this unit comes pre-equipped with factory-installed equipment ground lugs, saving installation time and hardware sourcing costs out on the job site. The heavy-duty lugs ensure an immediate, low-resistance mechanical bond to the building ground network, and are designed to securely clamp AWG 14 to 6 copper or AWG 12 to 6 aluminum field wiring.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|

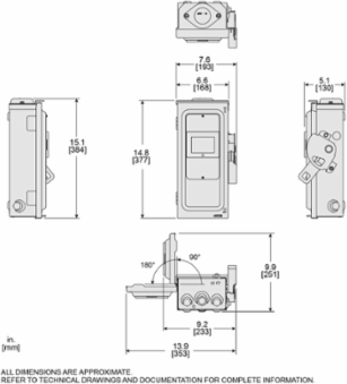

| Depth | 5.106 in |
|---|
Complementary Attributes
| Line Rated Current | 30 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Fuse Type | H or K, R or J |
| Tightening Torque | 45-45 lbf.in 13.3-13.3 mm² (6 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG), 35-35 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG) |
| Carbon Footprint Of The Distribution Phase [A4] | 1.1530080516702423, 1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.13590701769789323, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 3 kg CO2 eq., 3.248016280353195 |
| Local Publishable Date | 2026-06-23 |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Services | factory installation |
| Sustainable Packaging | Yes |
| Wiring Configuration | 3-wire |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 83 |
| Width Nominal | 6.62 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Package Weight(Lbs) | 4 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Motor Power Hp | 5 hp at 480 V AC 50-60 Hz for 3 phase motors, 15 hp at 480 V AC 50-60 Hz for 3 phase motors7.5 hp at 600 V AC 50-60 Hz for 3 phase motors, 20 hp at 600 V AC 50-60 Hz for 3 phase motors, 15 hp at 600 V DC |
| Short-circuit Current | 10 kA for H, K, J or R without fuse rejection clips, 200 kA for R with fuse rejection clips, 200 kA for J |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 9 kg CO2 eq., 9.213820047725156 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 23 kg CO2 eq., 23.4755747592267 |
| Local Data Status | Publishable |
| Pre Comm Date | 2023-04-05 |
| Stocking Flag | Y |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2530 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 12 AWG...6 AWG aluminium14 AWG...6 AWG copper |
| Device Composition | field installed kit available |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 37 kg CO2 eq. |
| Pep Code | ENVPEP2303036EN |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 14.843 in |
| Certificate Agency | UL listed file E2875 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 37.22632615667318 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2303036EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2303036EN |
| Nema Degree Of Protection | NEMA 3R galvannealed steel |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
