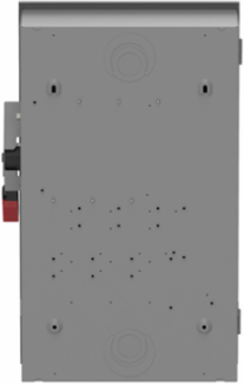

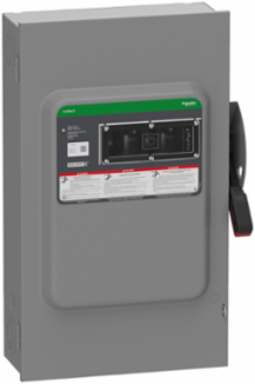

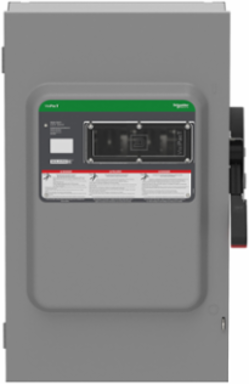

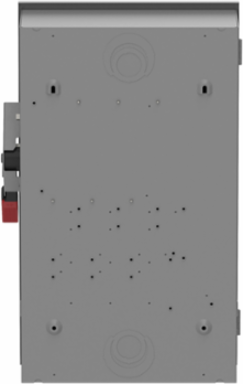

Schneider Electric VH364GL Heavy Duty Fused Safety Switch 600V 200A 3-Pole NEMA 1
- MPN: VH364GL
- PPN: SCH-VH364GL
CAD
$1051.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric VH364GL Heavy Duty Fused Safety Switch is designed for robust electrical performance and reliable safety in various industrial applications. With a rating of 600V and 200A, this 3-pole switch ensures efficient and effective control of electrical circuits. Ideal for environments that require a secure and dependable disconnection, the NEMA 1 enclosure provides protection against dust and non-corrosive environments, making it a solid choice for any facility prioritizing safety and operational efficiency. Whether for automating processes or enhancing safety connectivity, this switch meets the high standards expected from Schneider Electric products.
Features
- The Schneider Square D VH364GL is a 200-Amp, 3-pole, 600V fusible safety switch. Part of the new VisiPacT line, it is designed to provide a high-performance disconnect for industrial motors and feeders, allowing for safe isolation of electrical equipment during maintenance or emergencies.
- The "GL" suffix indicates a factory-installed viewing window. This allows operators to visually verify that the internal switch blades are actually disconnected (visible air gap) without exposing themselves to the potential arc flash hazards of opening the enclosure door while the system is energized.
- This switch is housed in a NEMA 1 indoor-rated steel enclosure. It is designed for dry, indoor environments to provide protection against accidental contact with live parts and falling dirt. For outdoor or "washdown" applications, you would need the NEMA 3R (VH364RGL) or NEMA 4X (VH364SSGL) versions.
- The VH364GL is built for high-demand industrial loads: 125 HP at 480V AC (Standard) / 150 HP at 600V AC (with Time-Delay fuses). 40 HP at 250V DC / 50 HP at 600V DC. It features a quick-make, quick-break mechanism that ensures the contacts snap open or closed rapidly, reducing internal arcing and extending the life of the switch.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 8.6 in |
|---|
Complementary Attributes
| Line Rated Current | 200 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Fuse Type | H or K, R or J |
| Short-circuit Current | 10 kA for H, K, J or R without fuse rejection clips, 200 kA for R with fuse rejection clips, 200 kA for J |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 59 kg CO2 eq., 59.424207170592375 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 145 kg CO2 eq., 144.9134911837968 |
| Local Data Status | Publishable |
| Pre Comm Date | 2023-04-05 |
| Stocking Flag | N |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2345 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |

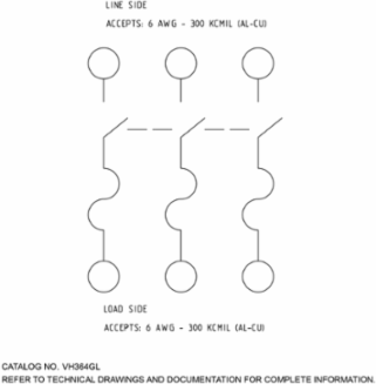

| Awg Gauge | 6 AWG...250 kcmil copper or aluminium |
| Device Composition | field installed kit available |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Software Version | v5.9.4 |
| Tightening Torque | 275-275 lbf.in 13.3-127 mm² (6 AWG...250 kcmil) |
| Wiring Configuration | 3-wire |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600 V and rated current 200 A.This function is provided for 20 years.The product qualifies for the standards UL50E Type 12,UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 88 |
| Width Nominal | 16.61 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Package Weight(Lbs) | 20.82 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Motor Power Hp | 50 hp at 600 V DC, 50 hp at 480 V AC 50-60 Hz for 3 phase motors, 125 hp at 480 V AC 50-60 Hz for 3 phase motors60 hp at 600 V AC 50-60 Hz for 3 phase motors, 150 hp at 600 V AC 50-60 Hz for 3 phase motors, 40 hp at 250 V DC |
| Carbon Footprint Of The Distribution Phase [A4] | 7.456202633548866, 7 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.38535143792524496, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 60 kg CO2 eq., 59.54437565158782 |
| Local Publishable Date | 2026-06-23 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Services | factory installation |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 272 kg CO2 eq. |
| Pep Code | ENVPEP2303037EN |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 28.93 in |
| Certificate Agency | UL listed file E2875 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 271.72362807745105 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2303037EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP2303037EN |
| Nema Degree Of Protection | NEMA 1 steel |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
