Balluff

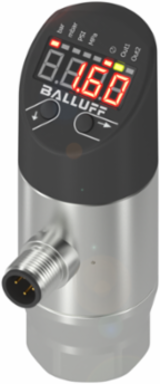

Balluff BSP B010-EV009-P00S2B-S4 Pressure Sensor 0-10 Bar, CE Certified, Stainless Steel Housing

  • MPN: BSP B010-EV009-P00S2B-S4
  • PPN: BAL-BSP00Y4

CAD

$553.16

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Designed for precision and reliability, the pressure sensors with display from Balluff are engineered to meet the rigorous demands of industrial applications. With a measuring range of 0 to 10 bar and an impressive accuracy of 0.5% FSO BFSL, these sensors ensure accurate monitoring of pressure in various media, even in extreme conditions ranging from -40 to 125 C. The robust stainless steel housing and IP67 rating guarantee durability in challenging environments, while the versatile analog output options and dual switching outputs provide flexibility for integration into diverse automation systems. With certifications including CE, UKCA, and cULus, you can trust in the quality and compliance of this German-manufactured device.

Documentation & Downloads

Specifications

Additional

Pressure Range0...10 bar
Burst Pressure35 bar
Operating Voltage18...30 VDC
Switching Output2x PNP/NPN NO/NC switchable
Process Connection Material1.4301 stainless steel
Gasket MaterialFluoroelastomer
InterfaceIO-Link 1.1
Ambient Temperature Range-40...85 b0C
ComplianceCE; UKCA; cULus; WEEE
Overload Pressure20 bar
Accuracy0.5 % FSO BFSL
Analog OutputAnalog, voltage/Analog, current selectable 4...20 mA/0...10 V
Process ConnectionG 1/4" (DIN 3852)
Housing Material1.4301 stainless steel; PE, High-density polyethylene
ConnectionConnector, M12x1-Male, 4-pin
Media Temperature Range-40...125 b0C
Ingress ProtectionIP67, when threaded in
Country of OriginGermany
Pressure Sensor 0-10 Bar, CE Certified, Stainless Steel Housing
