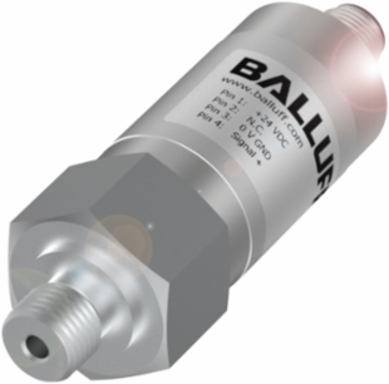

Balluff BSP B400-DV004-A06A1A-S4 Pressure Sensor, 0-400 bar, IP67, Stainless Steel, M12 Connector
- MPN: BSP B400-DV004-A06A1A-S4
- PPN: BAL-BSP00F3
CAD
$314.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure Sensor, 0-400 bar, IP67, Stainless Steel, M12 Connector
Documentation & Downloads
Specifications
Additional
| Measuring Range | 0-400 bar |
|---|---|
| Burst Pressure | 1500 bar |
| Output Type | Analog, current 4 20 mA |
| Current Draw Max | 25 mA |
| Process Connection Material | Stainless steel (1.4571) |
| Connector | M12x1 Male, 4-pin |
| Media Temperature Range | -40 to 125 C |
| Compliance | CE, cULus, WEEE |
| Accuracy | 0.5 % FSO BFSL |
|---|---|
| Overload Pressure | 1200 bar |
| Operating Voltage | 8-32 VDC |
| Process Connection | G 1/4" (DIN 3852) |
| Housing Material | Stainless steel (1.4301) |
| IP Rating | IP67 |
| Ambient Temperature Range | -40 to 85 C |
