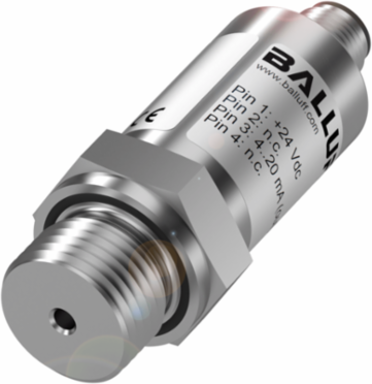

Balluff BSP B100-HV004-A06A1A-S4 Pressure Sensor, 0-100 bar, Stainless Steel, IP67, M12 4-pin Connector
- MPN: BSP B100-HV004-A06A1A-S4
- PPN: BAL-BSP00FT
CAD
$273.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure Sensor, 0-100 bar, Stainless Steel, IP67, M12 4-pin Connector
Documentation & Downloads
Specifications
Additional
| Measuring Range | 0-100 bar |
|---|---|
| Operating Voltage | 8-32 VDC |
| Process Connection | G 1/2" (DIN 3852) |
| Housing Material | Stainless Steel (1.4301) |
| IP Rating | IP67 |
| Media Temperature Range | -40 to 125 C |
| Accuracy | 0.5 % FSO BFSL |
|---|---|
| Analog Output | 4-20 mA current |
| Process Connection Material | Stainless Steel (1.4301) |
| Connection | M12x1 Male, 4-pin |
| Ambient Temperature Range | -40 to 85 C |
| Approval/Conformity | CE, cULus, WEEE |
