Pressure Sensor, Stainless Steel, 0-2 Bar, IP67
Balluff

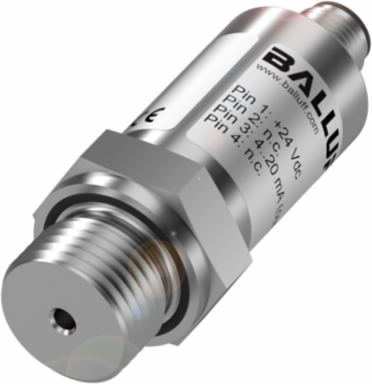

Balluff BSP B002-HV004-A06A1A-S4 Pressure Sensor, Stainless Steel, 0-2 Bar, IP67

  • MPN: BSP B002-HV004-A06A1A-S4
  • PPN: BAL-BSP00J4

CAD

$273.16

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Designed for precision and durability, the Balluff BSP B002-HV004-A06A1A-S4 Pressure Sensor is an exceptional choice for various industrial applications. With a robust stainless steel housing that ensures resistance to harsh environments, this sensor operates effectively within a wide temperature range of -40 to 85 °C and can handle media temperatures up to 125 °C. Featuring an analog output with a current range of 4-20 mA and a measuring range of 0-2 bar, it provides reliable performance and accuracy of ±0.5% FSO BFSL. Additionally, its IP67 rating guarantees protection against dust and water ingress, making it a reliable component for demanding settings.

Documentation & Downloads

Specifications

Additional

Output
Analog, current 4-20 mA
Measuring Range
0-2 bar
Process Connection
G 1/2" (DIN 3852)
Housing Material
Stainless steel (1.4301)
Media Temperature Range
-40 to 125 °C
IP Rating
IP67
Material
Stainless steel (1.4301), Nickel-plated brass, Fluoroelastomer, Ceramic Al2O3
Protection Class
III
Weight
120 g
Overload Pressure
4 bar
Sampling Rate
1 ms
Temperature Coefficient
≤ ±0.5 % FSO/10K
Operating Voltage8-32 VDC
Accuracy±0.5% FSO BFSL
ConnectionConnector, M12x1-Male, 4-pin
Process Connection MaterialStainless steel (1.4301)
Ambient Temperature Range-40 to 85 °C
ComplianceCE, cULus, WEEE
Current Draw25 mA max
Tightening Torque10 Nm max
Burst Pressure10 bar
Resolution≤ 14 bits
Load Cycles100 million
