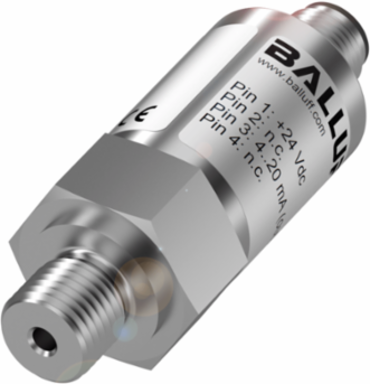

Balluff BSP B005-DV004-A06A1A-S4 Pressure Sensor, 0-5 Bar, Stainless Steel, M12 Connector, IP67
- MPN: BSP B005-DV004-A06A1A-S4
- PPN: BAL-BSP00H0
CAD
$273.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pressure Sensor, 0-5 Bar, Stainless Steel, M12 Connector, IP67
Documentation & Downloads
Specifications
Additional
- Measuring Range
- 0-5 bar
- Analog Output
- 4-20 mA
- Overload Pressure
- 12 bar
- Process Connection
- G 1/4" (DIN 3852)
- Ambient Temperature
- -40 to 85 °C
- Weight
- 120 g
- Housing Material
- Stainless steel (1.4301)
- IP Rating
- IP67
Operating Voltage8-32 VDC
Accuracy±0.5 % FSO BFSL
Burst Pressure15 bar
ConnectionConnector, M12x1 Male, 4-pin, A-coded
Media Temperature-40 to 125 °C
Process Connection MaterialStainless steel (1.4301)
MaterialNickel-plated brass, Fluoroelastomer, Ceramic Al2O3
Approval/ConformityCE, cULus, WEEE
