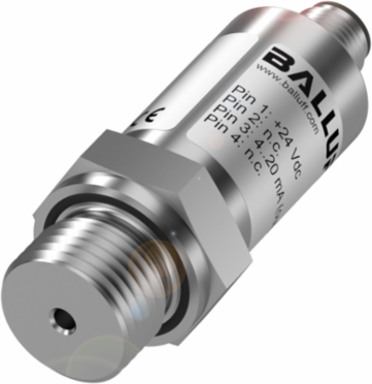

Balluff BSP B010-HV004-A06A1A-S4 Pressure Sensor, 0-10 Bar, Stainless Steel, M12 Connector, IP67
- MPN: BSP B010-HV004-A06A1A-S4
- PPN: BAL-BSP00J6
CAD
$273.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure Sensor, 0-10 Bar, Stainless Steel, M12 Connector, IP67
Documentation & Downloads
Specifications
Additional
| Measuring Range | 0-10 bar |
|---|---|
| Operating Voltage | 8-32 VDC |
| Connection | M12x1 Male, 4-pin |
| Housing Material | Stainless steel (1.4301) |
| Ambient Temperature Range | -40 to 85 C |
| IP Rating | IP67 |
| Material | Stainless Steel, Nickel-plated brass, Fluoroelastomer, Ceramic Al2O3 |
| Burst Pressure | 35 bar |
| Tightening Torque | 10 Nm max |
| Storage Temperature Range | -40 to 85 C |
| Sampling Rate | 1 ms |
| Temperature Coefficient | 0.5 % FSO/10K |
| Accuracy | 0.5 % FSO BFSL |
|---|---|
| Output | 4-20 mA analog current |
| Process Connection | G 1/2" (DIN 3852) |
| Process Connection Material | Stainless steel (1.4301) |
| Media Temperature Range | -40 to 125 C |
| Approval/Conformity | CE, cULus, WEEE |
| Current Draw | 25 mA max |
| Overload Pressure | 20 bar |
| Weight | 120 g |
| Load Cycles | 100 million |
| Resolution | 14 bits |
