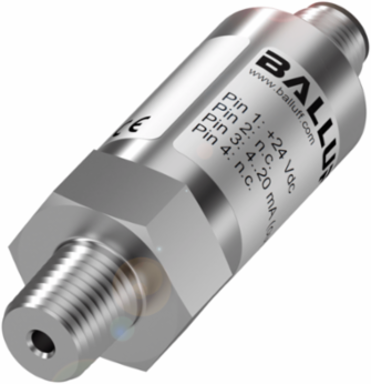

Balluff BSP B100-FV004-A06A1A-S4 Pressure Sensor 0-100 bar, M12 Connector, IP67, Stainless Steel
- MPN: BSP B100-FV004-A06A1A-S4
- PPN: BAL-BSP00HH
CAD
$273.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure Sensor 0-100 bar, M12 Connector, IP67, Stainless Steel
Documentation & Downloads
Specifications
Additional
| Measuring Range | 0-100 bar |
|---|---|
| Operating Voltage | 8-32 VDC |
| Overload Pressure | 200 bar |
| Long-term Stability | 0.3 % FSO/year max |
| Sampling Rate | 1 ms |
| Media Temperature | -40 to 125 C |
| Connection | Connector, M12x1-Male, 4-pin, A-coded |
| Weight | 120 g |
| Protection Rating | IP67 |
| Storage Temperature | -40 to 85 C |
| Analog Output | Analog, current 4-20 mA |
|---|---|
| Accuracy | 0.5 % FSO BFSL |
| Burst Pressure | 300 bar |
| Resolution | 14 bits |
| Ambient Temperature | -40 to 85 C |
| Process Connection | 1/4" NPT |
| Material | Stainless steel (1.4301), Nickel-plated brass, Ceramic Al2O3, Fluoroelastomer |
| Maximum Tightening Torque | 30 Nm |
| Compensation Temperature | -25 to 85 C |
| Compliance | CE, cULus, WEEE |
