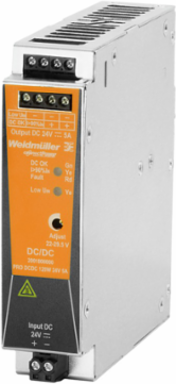

Weidmuller 2001800000 PRO DCDC 120W 24V 5A
- MPN: 2001800000
- PPN: WDM-2001800000
CAD
$319.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
DC/DC converter, 24 V
Documentation & Downloads
Specifications
General Data
- AC failure bridging time @ I
- > 10 ms @ 24 V DC
- Current limiting
- 150% Iout
- Housing version
- Metal, corrosion resistant
- Max. perm. air humidity (operational)
- 5 %…95 % RH
- Operating temperature
- -25 °C...70 °C
- Power loss, nominal load
- 11 W
- Protection against reverse voltages from the load
- 33…34 V DC
- Protective circuit
- Overtemperature, Short-circuit, Inverse voltage
- Start-up
- ≥ -40 °C
Clip-in footmetal
Degree of efficiencyTyp.: 92 %
Humidity5...95 %, no condensation
Mounting position, installation noticeHorizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between., 50 mm clearance at top and bottom for free air circulation, mountable side by side without clearance
Power loss, idling2 W
Protection against over-heatingYes
Protection degreeIP20
Short-circuit protectionYes
Surge voltage categoryIII
Probability Of Failure
- MTBF
- 1,250,000 h

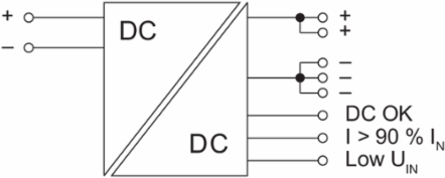

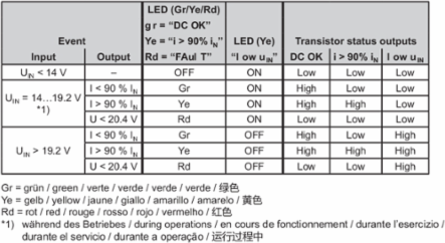

Signalling
- Transistor output, positive-switching
- DC OK: 20 mA max., short-circuit-proof, I > 90%: 20 mA max., short-circuit-proof, Low UIN: 20 mA max., short-circuit-proof
Connection Data (Input)
- Conductor cross-section, AWG/kcmil , max.
- 12 AWG
- Conductor cross-section, flexible , min.
- 0.2 mm²
- Conductor cross-section, rigid , min.
- 0.2 mm²
- Number of terminals
- 2 for (+, -)
- Tightening torque, max.
- 0.5 Nm
- Wire connection cross section, flexible (input), max.
- 4 mm²
Conductor cross-section, AWG/kcmil , min.30 AWG
Conductor cross-section, rigid , max.4 mm²
Connection systemScrew connection: pluggable
Reverse polarity protectionYes
Tightening torque, min.0.4 Nm
Approvals
- Approvals
- ABS, BURVER, CULUS, CULUSEX, DNV GL, LLOYDSREG, RINA
- UL File Number Search
- E258476
ROHSConform
Dimensions And Weights
- Width
- 32 mm
- Height
- 130 mm
- Depth
- 120 mm
- Net weight
- 774 g
Width (inches)1.26 inch
Height (inches)5.118 inch
Depth (inches)4.724 inch
Electrical Safety (Applied Standards)
- Electrical machine equipment
- Acc. to EN60204
- Protection against dangerous shock currents
- Acc. to VDE0106-101
- Safety extra-low voltage
- SELV according to EN 60950, PELV according to EN 60204
For use with electronic equipmentAcc. to EN50178 / VDE0160
Protective separation / protection against electrical shockVDE0100-410 / acc. to DIN57100-410
Safety transformers for switch-mode power suppliesAccording to EN 61558-2-16
Emc / Shock / Vibration
- Limiting of mains voltage harmonic currents
- According to EN 61000-3-2
- Vibration resistance IEC 60068-2-6
- 2.3 g (15 Hz…150 Hz)
- Shock resistance IEC 60068-2-27
- 30 g in all directions
Noise emission in accordance with EN55032Class B
Interference immunity test acc. toEN 61000-4-2 (ESD), EN 61000-4-4 (burst), EN 61000-4-5 (surge), EN 61000-4-6 (conducted), EN61000-4-3 (HF field)
Input
- Connection system
- Screw connection: pluggable
- Input fuse (internal)
- Yes
- Inrush current
- Max. 10 A
- Recommended back-up fuse
- 10 A, Char. B circuit breaker, 10 A, Char. C circuit breaker
DC input voltage range14...32 V (during operation), 18...32 V (commissioning)
Inrush Current LimitationYes
Rated input voltage24 V DC
Classifications
- ETIM 6.0
- EC002540
- eClass 9.0
- 27-04-07-01
- eClass 10.0
- 27-04-07-01
ETIM 7.0EC002540
eClass 9.127-04-07-01
Output

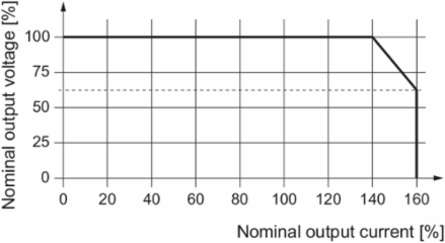

- DCL - peak load reserve
- 150 % (5 s); 200 % (200 ms); 300 % (100 ms); 400 % (50 ms); 600 % (20 ms)

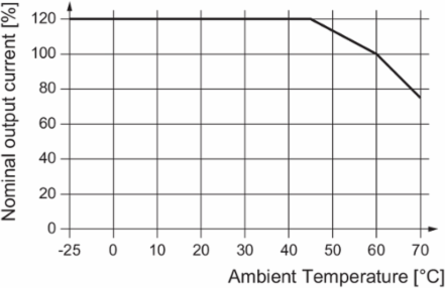

- Continous output current @ U
- 5 A @ 40 °C, 6 A @ 45°C, 3,75 A @ 70°C
- Output power
- 120 W
- Overload protection
- Yes
- Protection against inverse voltage
- Yes
- Rated output voltage
- 24 V DC ± 1 %
- Residual ripple, breaking spikes
- max. 20 mVpp @ 24 VDC, IN
Capacitive loadunrestricted
Output current5 A
Output voltage22.5...29.5 V (adjustable via potentiometer on front)
Parallel connection optionyes, max. 5 (without diode module)
Ramp-up time≤ 9 ms (Uout: 10%...90%)
Reserve capacity @ U600% IN for 16 ms
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
System Data
- Output current
- 5 A
Insulation Coordination
- Humidity at operating temperature
- 5...95 %, no condensation
- Insulation voltage output / earth
- 0.5 kV
- Pollution severity
- 2
- Surge voltage category
- III
Insulation voltage input / earth1.5 kV
Insulation voltage, input/output1.5 kV
Protection classIII, with no ground connection, for SELV
Connection Data (Output)
- Conductor cross-section, AWG/kcmil , max.
- 14 AWG
- Conductor cross-section, flexible , max.
- 2.5 mm²
- Conductor cross-section, rigid , max.
- 2.5 mm²
- Number of terminals
- 8 (+ / - / signal)
- Tightening torque, min.
- 0.4 Nm
Conductor cross-section, AWG/kcmil , min.24 AWG
Conductor cross-section, flexible , min.0.2 mm²
Conductor cross-section, rigid , min.0.2 mm²
Tightening torque, max.0.5 Nm
Temperatures
- Humidity
- 5...95 %, no condensation
- Operating temperature, max.
- 70 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -25 °C...70 °C
Humidity at operating temperature5...95 %, no condensation
Operating temperature, min.-25 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...85 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E258476
