Balluff

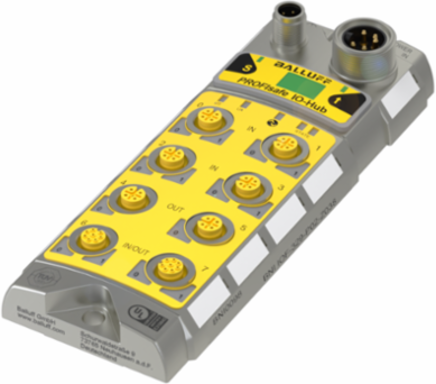

Balluff BNI IOF-329-P02-Z038 PROFIsafe over IO-Link Module, SIL 3, IP67, 14 Digital Inputs, 12 Digital Outputs

PROFIsafe over IO-Link Module, SIL 3, IP67, 14 Digital Inputs, 12 Digital Outputs
  • MPN: BNI IOF-329-P02-Z038
  • PPN: BAL-BNI0098

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1328.26/ EA

Specifications

Specifications

Country of Origin
Hungary
Safety category (EN ISO 13849-1)
4
SIL CL (EN 62061)
3
Approval/Conformity
CE; UKCA; TÜV; IO-Link; cULus; WEEE
Number of safe outputs
2
Current sum UA, actuator
8 A
Digital outputs
2x PP/PM; 2x PNP
Connection slots
2x M12x1-Female, 8-pin, A-coded; 6x M12x1-Female, 5-pin, A-coded
Ambient temperature
-5...55 °C
Housing material
Zinc, Die casting, nickel-plated
Performance Levele
SIL (IEC 61508)3
Response time max.20 ms
Number of safe inputs12
Current sum US, sensor4.8 A
Digital inputs14x PNP, Type 3
InterfacePROFIsafe over IO-Link 1.1
Dimension68 x 32.4 x 181.5 mm
IP rating per IEC 60529IP67
