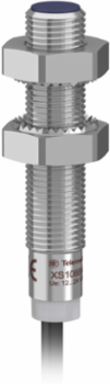

Telemecanique Sensors XS108BLPAL2 inductive sensor XS1 M8, L42mm, brass, Sn1.5mm, 12..24VDC, cable 2m
- MPN: XS108BLPAL2
- PPN: TES-XS108BLPAL2
CAD
$125.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, flush mountable sensor. Diameter 8mm, threaded M8 x 1. It features a metal cylindrical boby and a 2m long cable. It has a sensing distance of 1.5mm. Three-wire, DC supply, 12V to 24V, NO function, PNP solid-state output.
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | cable |
|---|---|
| Discrete Output Type | PNP |
| Type Of Output Signal | discrete |
| Cable Length | 2 m |
| Size | 42 mm |
| Ip Degree Of Protection | IP67 IEC 60529 |
| Body Type | fixed |
| Sensor Type | inductive proximity sensor |
| Sensor Design | cylindrical M8 |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
|---|---|
| Discrete Output Function | 1 NO |
| Range Of Product | Telemecanique Inductive proximity sensors XS |
| Sensor Name | XS1 |
| Wiring Technique | 3-wire |
| Series Name | general purpose |
| [Sn] Nominal Sensing Distance | 1.5 mm |
| Switching Capacity In Ma | <= 200 mA overload and short-circuit protection |
| Enclosure Material | nickel plated brass |
Complementary
| Iso Thread | M8 x 1 |
|---|---|
| Maximum Delay Response | 5 ms |
| Operating Zone | 0-1.2 mm |
| Threaded Length | 33 mm |
| Length | 42 mm |
| Net Weight | 0.035 kg |
| Differential Travel | 1...15% of Sr |
| Maximum Delay First Up | 15 ms |
| Detector Flush Mounting Acceptance | flush mountable |
| Detection Face | frontal |
| Front Material | PPS |
| Current Consumption | <= 10 mA no-load |
|---|---|
| Status Led | output state 1 LED yellow) |
| Maximum Voltage Drop | <2 V closed) |
| Marking | CE |
| Material | metal |
| Switching Frequency | <= 1000 Hz |
| Maximum Delay Recovery | 0.3 ms |
| Supply Voltage Limits | 10-36 V DC |
| Wire Insulation Material | PVC |
| Cable Composition | 3 x 0.11 mm² |
| Output Circuit Type | DC |
Environment
| Product Certifications | CSA || UL |
|---|---|
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111006EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Circularity Profile | ENVEOLI1110045 |
