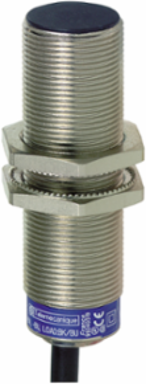

Telemecanique Sensors XS518B1MAL2 Inductive proximity sensors XS, inductive sensor XS5 M18, L62mm, brass, Sn5mm, 24...240VAC/DC, cable 2 m
- MPN: XS518B1MAL2
- PPN: TES-XS518B1MAL2
CAD
$174.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XS cylindrical (M18 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 24V to 240V AC/DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has an annular LED for easy sensor status viewing, setup and troubleshooting. IP65 and IP68 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It features double insulation for better people and system protection from electrical shocks. It is CCC, CSA, UL certified.
Documentation & Downloads
Specifications
Additional
- Supply Voltage
- 24...240 V AC/DC with reverse polarity protection
- Switching Frequency
- 1000 Hz DC, 25 Hz AC
- Maximum Delay Response
- 0.5 ms
- Operating Temperature Range
- -25...70 C
- Output Function
- 1 NO
- Size
- 62 mm
- Threaded Length
- 52 mm
- Weight
- 0.12 kg
- Detection Face
- frontal
- Cable Composition
- 2 x 0.34 mm2, PVC insulation
- Front Material
- PPS
- Body Type
- fixed
- Vibration Resistance
- 25 gn, 10...55 Hz IEC 60068-2-6
- Compliance
- CSA, UL, CE, CCC
- Reach Regulation
- Contains SVHC above threshold
- EU RoHS Directive
- Pro-active compliance (out of EU RoHS legal scope)
- Status LED
- Yellow output state LED
- Series Name
- General purpose
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Circularity Profile
- ENVEOLI1110045
- Maximum Residual Current
- 0.8 mA open state
Switching Capacity5...200 mA DC, 5...300 mA AC
Nominal Sensing Distance5 mm
Maximum Delay Recovery0.5 ms
Storage Temperature Range-40...85 C
Output Circuit TypeAC/DC
Thread SizeM18 x 1
Cable Length2 m
Sensor Designcylindrical M18
Electrical Connectioncable
MaterialNickel plated brass, PPS
Enclosure MaterialNickel plated brass
Protection RatingIP68 double insulation IEC 60529, IP69K DIN 40050
Shock Resistance50 gn, 11 ms IEC 60068-2-27
RoHS ExemptionYes
Environmental DisclosureENVPEP111006EN
Mercury FreeYes
Sensor TypeInductive proximity sensor
Type Of Output SignalDiscrete
Sustainable Offer StatusGreen Premium product
Maximum Voltage Drop<5.5 V closed state
Wiring Technique2-wire
