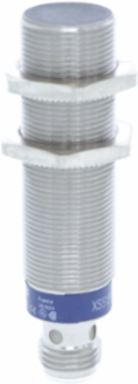

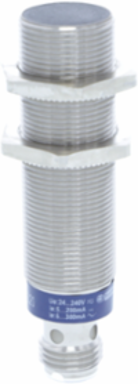

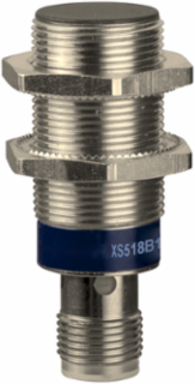

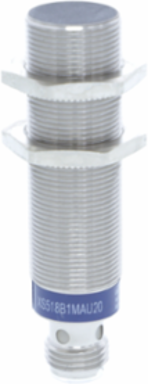

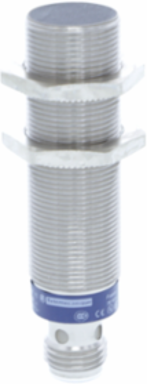

Telemecanique Sensors XS518B1MAU20 Inductive proximity sensors XS, inductive sensor XS5 M18, L73mm, brass, Sn5mm, 24...240VAC/DC, 1/2"
- MPN: XS518B1MAU20
- PPN: TES-XS518B1MAU20
CAD
$166.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XS cylindrical (M18 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 24V to 240V AC/DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP67 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It is CCC, CSA, UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- male connector 1/2"20 UNF, 3 pins
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Material
- metal
- Wiring Technique
- 2-wire
- Series Name
- general purpose
- [Sn] Nominal Sensing Distance
- 5 mm
- Detector Flush Mounting Acceptance
- flush mountable
- Sensor Design
- cylindrical M18
[Us] Rated Supply Voltage24...240 V AC/DC reverse polarity protection
Type Of Output Signaldiscrete
Sensor NameXS5
Size73 mm
Ip Degree Of ProtectionIP67 IEC 60529 || IP69K DIN 40050
Body Typefixed
Sensor Typeinductive proximity sensor
Switching Capacity In Ma5...200 mA DC || 5...300 mA AC
Output Circuit TypeAC/DC
Complementary
- Maximum Delay Response
- 0.5 ms
- Operating Zone
- 0-4 mm
- Threaded Length
- 52 mm
- Length
- 73 mm
- Switching Frequency
- <= 1000 Hz DC || <= 25 Hz AC
- Differential Travel
- 1...15% of Sr
- Maximum Delay First Up
- 25 ms
- Detection Face
- frontal
- Front Material
- PPS
Status Ledoutput state 1 LED yellow)
Maximum Voltage Drop<5.5 V closed)
MarkingCE
Maximum Residual Current0.8 mA open state
Thread TypeM18 x 1
Maximum Delay Recovery0.5 ms
Supply Voltage Limits20-264 V AC/DC
Enclosure Materialnickel plated brass
Environment
- Product Certifications
- CSA || UL
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
