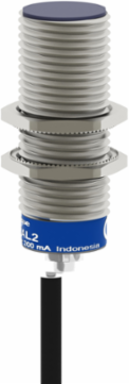

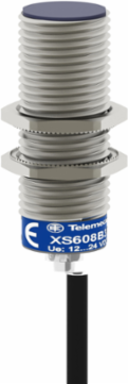

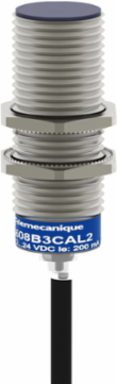

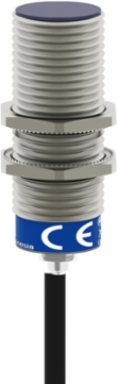

Telemecanique Sensors XS608B3CAL2 Inductive proximity sensors XS, inductive sensor XS6 M8, L33mm, brass, Sn2.5 mm, 12...24 VDC, cable 2 m
- MPN: XS608B3CAL2
- PPN: TES-XS608B3CAL2
- UNSPSC: 39122230
CAD
$128.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XS cylindrical (M8 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has an annular LED for easy sensor status viewing, setup and troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It features double insulation for better people and system protection from electrical shocks. It is CSA, UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- cable
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Sensor Name
- XS6
- Size
- 33 mm
- Ip Degree Of Protection
- IP67 conforming to IEC 60529
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Switching Capacity In Ma
- <= 100 mA DC overload and short-circuit protection
- Output Circuit Type
- DC
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Type Of Output Signaldiscrete
Cable Length2 m
Materialmetal
Wiring Technique2-wire
Series Namegeneral purpose
[Sn] Nominal Sensing Distance2.5 mm
Detector Flush Mounting Acceptanceflush mountable
Sensor Designcylindrical M8
Complementary
- Maximum Delay Response
- 0.3 ms
- Operating Zone
- 0-2 mm
- Threaded Length
- 25 mm
- Length
- 33 mm
- Switching Frequency
- <= 3000 Hz DC
- Sensing Range
- > 0...0.1 in (> 0...2.5 mm)
- Maximum Delay Recovery
- 0.3 ms
- Supply Voltage Limits
- 10-36 V DC
- Detection Face
- frontal
- Cable Composition
- 2 x 0.11 mm²
Status Ledoutput state 1 LED yellow)
Maximum Voltage Drop<4 V closed)
MarkingCE
Net Weight0.07 kg
Thread TypeM8 x 1
Differential Travel1...15% of Sr
Maximum Delay First Up10 ms
Wire Insulation MaterialPVC
Enclosure MaterialNickel Plated Brass
Front MaterialPPS
Environment
- Product Certifications
- CSA || UL
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1110045
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
