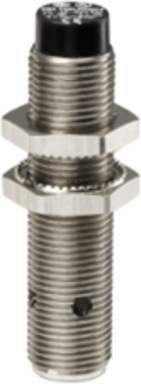

Telemecanique Sensors XS2M12KP340D inductive sensor XS2 M12, L66mm, brass, Sn4mm, 12..24VDC, M12
- MPN: XS2M12KP340D
- PPN: TES-XS2M12KP340D
- UNSPSC: 39122230
CAD
$203.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, non flush mountable sensor. Diameter 12mm, threaded M12 x 1. It features a nickel plated brass case and a M12 conector. It has a sensing distance of 2mm. Four-wire, DC supply, 12V to 24V, solid state PNP + NPN, NO/NC programmable output.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- male connector M12, 4 pins
- Discrete Output Type
- PNP and NPN
- Type Of Output Signal
- discrete
- Sensor Name
- XS2
- Size
- 66 mm
- Ip Degree Of Protection
- IP67 conforming to IEC 60529
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Switching Capacity In Ma
- <= 200 mA overload and short-circuit protection
- Output Circuit Type
- DC
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NO or 1 NC programmable
Range Of ProductTelemecanique Inductive proximity sensors XS
Materialmetal
Wiring Technique4-wire
Series Namegeneral purpose
[Sn] Nominal Sensing Distance4 mm
Detector Flush Mounting Acceptancenon flush mountable
Sensor Designcylindrical M12
Complementary
- Current Consumption
- 0...10 mA no-load
- Status Led
- output state 1 LED yellow)
- Maximum Voltage Drop
- <2.6 V closed)
- Marking
- CE
- Net Weight
- 0.075 kg || 0.025 kg
- Thread Type
- M12 x 1
- Maximum Delay Recovery
- 0.1 ms
- Supply Voltage Limits
- 10-36 V DC
- Enclosure Material
- Nickel Plated Brass
Maximum Delay Response0.1 ms
Operating Zone0-3.2 mm
Threaded Length42 mm
Length66 mm
Switching Frequency<= 5000 Hz
Differential Travel1...15% of Sr
Maximum Delay First Up5 ms
Detection Facefrontal
Front MaterialPPS
Environment
- Product Certifications
- CSA || UL
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1110045
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
