Telemecanique Sensors XSAV11373 Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 6...150c/mn, 12...48 VDC, cable 2 m
Telemecanique Sensors XSAV11373 Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 6...150c/mn, 12...48 VDC, cable 2 m
- MPN: XSAV11373
- PPN: TES-XSAV11373
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$350.32/ EA
Description

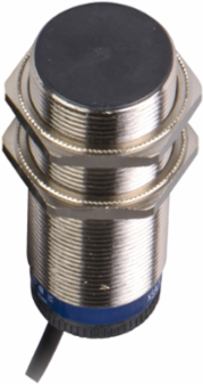

This cylindrical diameter 30 mm threaded M30 x 1.5 flush mountable sensor is part of XS range, an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected, thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products). It features a nickel plated brass case and a 2m long cable. It has a sensing distance of 10mm, three-wire, DC supply, 12V to 48V, NO function, PNP solid state output. These self-contained rotation speed monitoring sensors have the special feature of incorporating, in the same case, the pulse sensing and processing electronics as well as the output switching amplifier. that are required to establish an integrated rotation monitoring device. The unit provides an economical solution for detecting slip, belt breakage, drive shaft shear and overloading, etc. In the following applications, conveyor belts, bucket elevators, Archemedian screws, grinders, crushers, pumps, centrifugal driers, mixers, etc.
Specifications
Environment
- Product Certifications
- CSA || UL || CCC
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
Complementary
- Current Consumption
- 0...15 mA no-load
- Repeat Accuracy
- 3% of Sr
- Maximum Voltage Drop
- <1.8 V closed)
- Marking
- CE
- Net Weight
- 0.3 kg
- Thread Type
- M30 x 1.5
- Adjustable Frequency Range
- 6-150 cyc/mn
- Run-Up Delay At Power-Up
- 9 s standard
- Wire Insulation Material
- PVC
- Cable Composition
- 3 x 0.34 mm²
Status Ledoutput state 1 LED red)
Operating Zone0-8 mm
Threaded Length67 mm
Length81 mm
Switching Frequency<= 100 Hz
Sensing Range> 8...15 mm
Differential Travel3...15% of Fr
Supply Voltage Limits10-58 V DC
Detection Facefrontal
Front MaterialPPS
Specifications
- Electrical Connection
- cable
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Cable Length
- 2 m
- Sensor Name
- XSA
- Size
- 81 mm
- Ip Degree Of Protection
- IP67 IEC 60529
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Switching Capacity In Ma
- <= 200 mA overload and short-circuit protection
- Enclosure Material
- nickel plated brass
- Device Application
- rotation monitoring
[Us] Rated Supply Voltage12...48 V DC reverse polarity protection
Discrete Output Function1 NC
Range Of ProductTelemecanique Inductive proximity sensors XS
Product Or Component Typesensor
Materialmetal
Wiring Technique3-wire
Series NameApplication
[Sn] Nominal Sensing Distance10 mm
Detector Flush Mounting Acceptanceflush mountable
Sensor Designcylindrical M30
Output Circuit TypeDC
