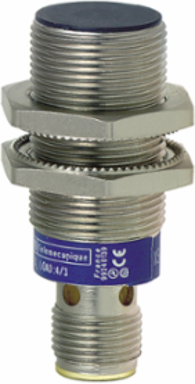

Telemecanique Sensors XS1N18PA349D Inductive proximity sensors XS, inductive sensor XS1 M18, L50mm, brass, Sn10mm, 12...24 VDC, M12
Telemecanique Sensors XS1N18PA349D Inductive proximity sensors XS, inductive sensor XS1 M18, L50mm, brass, Sn10mm, 12...24 VDC, M12
- MPN: XS1N18PA349D
- PPN: TES-XS1N18PA349D
- UNSPSC: 41111926
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$182.93/ EA
Description
This cylindrical diameter 18 mm threaded M18 x 01 flush mountable sensor is part of XS range, an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected, thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products). It features a nickel plated brass case and a M12 connector. It has a sensing distance of 10mm, three-wire, DC supply, 12V to 24V, NO function, PNP solid state output.
Specifications
Environment
- Product Certifications
- UL || CSA
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-50 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
Complementary
- Current Consumption
- 0...10 mA no-load
- Maximum Delay Response
- 0.3 ms
- Operating Zone
- 0-8 mm
- Threaded Length
- 28 mm
- Length
- 50 mm
- Switching Frequency
- <= 1000 Hz
- Differential Travel
- 1...15% of Sr
- Maximum Delay First Up
- 5 ms
- Detection Face
- frontal
Height18 mm
Status Ledoutput state 1 LED yellow)
Maximum Voltage Drop<2 V closed)
MarkingCE
Net Weight0.04 kg
Thread TypeM18 x 1
Maximum Delay Recovery0.7 ms
Supply Voltage Limits10-36 V DC
Front MaterialPPS
Specifications
- Electrical Connection
- male connector M12, 4 pins
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Material
- metal
- Wiring Technique
- 3-wire
- Series Name
- general purpose
- [Sn] Nominal Sensing Distance
- 10 mm
- Detector Flush Mounting Acceptance
- flush mountable
- Sensor Design
- cylindrical M18
- Output Circuit Type
- DC
Discrete Output TypePNP
Type Of Output Signaldiscrete
Sensor NameXS1
Size50 mm
Ip Degree Of ProtectionIP67 IEC 60529 || IP69K DIN 40050
Body Typefixed
Sensor Typeinductive proximity sensor
Switching Capacity In Ma<= 200 mA DC overload and short-circuit protection
Enclosure Materialnickel plated brass
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
