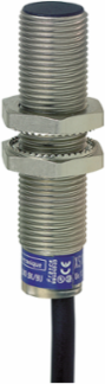

Telemecanique Sensors XS1M12KP340 inductive sensor XS1 M12, L50mm, brass, Sn2mm, 12..24VDC, cable 2m
- MPN: XS1M12KP340
- PPN: TES-XS1M12KP340
- UNSPSC: 39122230
CAD
$191.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, flush mountable sensor. Diameter 12mm, threaded M12 x 1. It features a nickel plated brass case and a 2m long cable. It has a sensing distance of 2mm Four-wire, DC supply, 12V to 24V, solid state PNP + NPN, NO/NC programmable output.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- cable
- Discrete Output Type
- PNP and NPN
- Type Of Output Signal
- discrete
- Cable Length
- 2 m
- Material
- metal
- Wiring Technique
- 4-wire
- Series Name
- general purpose
- [Sn] Nominal Sensing Distance
- 2 mm
- Detector Flush Mounting Acceptance
- flush mountable
- Sensor Design
- cylindrical M12
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NO or 1 NC programmable
Range Of ProductTelemecanique Inductive proximity sensors XS
Sensor NameXS1
Size54 mm
Ip Degree Of ProtectionIP68 double insulation IEC 60529
Body Typefixed
Sensor Typeinductive proximity sensor
Switching Capacity In Ma<= 200 mA overload and short-circuit protection
Output Circuit TypeDC
Complementary
- Current Consumption
- 0...10 mA no-load
- Status Led
- output state 1 LED yellow)
- Maximum Voltage Drop
- <2.6 V closed)
- Marking
- CE
- Net Weight
- 0.075 kg
- Thread Type
- M12 x 1
- Maximum Delay Recovery
- 0.1 ms
- Supply Voltage Limits
- 10-36 V DC
- Detection Face
- frontal
- Cable Composition
- 4 x 0.22 mm²
Maximum Delay Response0.1 ms
Operating Zone0-1.6 mm
Threaded Length42 mm
Length54 mm
Switching Frequency<= 5000 Hz
Differential Travel1...15% of Sr
Maximum Delay First Up5 ms
Wire Insulation MaterialPVC
Enclosure Materialnickel plated brass
Front MaterialPPS
Environment
- Product Certifications
- CSA || UL
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
