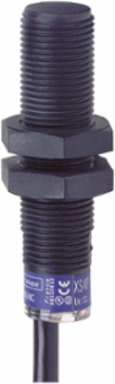

Telemecanique Sensors XS4P12AB120 Inductive proximity sensors XS, inductive sensor XS4 M12, L50mm, PBT, Sn4mm, 12...24 VDC, cable 2 m
Telemecanique Sensors XS4P12AB120 Inductive proximity sensors XS, inductive sensor XS4 M12, L50mm, PBT, Sn4mm, 12...24 VDC, cable 2 m
- MPN: XS4P12AB120
- PPN: TES-XS4P12AB120
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$337.52/ EA
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. This solid-state sensor is designed for position, displacement and deformation control/monitoring. The operating principle of this sensor is that of a damped oscillator. The degree of damping will depend on the distance of an object from the sensing face. The sensor will sense the distance and produce an output current with a value directly proportional to this distance. It is a diameter 12mm sensor with an 4mA to 20mA analogue output signal. Two-wire, DC supply, 12V to 24V. It features a diameter 12mm plastic case and a 2m long PvR cable. It has a sensing distance of 4mm.
Specifications
Environment
- Product Certifications
- UL || CSA
Ambient Air Temperature For Operation-25-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
Complementary
- Current Consumption
- 4 mA no-load
- Linearity Error
- +/- 2 mA
- Operating Zone
- 0.4-4 mm
- Marking
- CE
- Length
- 50 mm
- Switching Frequency
- <= 1500 Hz
- Supply Voltage Limits
- 10-36 V DC
- Detection Face
- frontal
- Cable Composition
- 3 x 0.34 mm²
Height12 mm
Repeat Accuracy<= 3% of Sr
Threaded Length42 mm
Maximum Output Current Drift10 %
Net Weight0.065 kg
Thread TypeM12 x 1
Wire Insulation MaterialPVC
Enclosure MaterialPBT
Front MaterialPBT
Specifications
- Electrical Connection
- cable
- Discrete Output Function
- 1 NC
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Analogue Output Range
- 4...20 mA
- Material
- plastic
- Wiring Technique
- 2-wire
- Series Name
- Application
- [Sn] Nominal Sensing Distance
- 4 mm
- Detector Flush Mounting Acceptance
- non flush mountable
- Electrical Circuit Type
- analog output
[Us] Rated Supply Voltage12...24 V DC
Type Of Output Signalanalogue
Cable Length2 m
Sensor NameXS4
Size54 mm
Ip Degree Of ProtectionIP67 IEC 60529
Body Typefixed
Sensor Typeinductive proximity sensor
Sensor Designcylindrical M12
Output Circuit TypeDC
