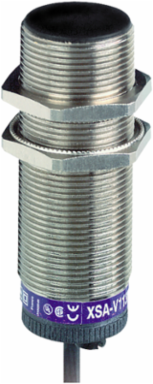

Telemecanique Sensors XSAV02801 Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 120...3000c/mn, 24...240VAC/DC, cable 2 m
- MPN: XSAV02801
- PPN: TES-XSAV02801
CAD
$425.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This sensor provides an economical solution for detecting slip, belt breakage, drive shaft shear and overloading. Dedicated to rotation monitoring, it is suitable for conveyor belts, bucket elevators and Archemedian screws. And also for grinders, crushers, pumps, centrifugal driers, mixers, etc. This product is a cylindrical, flush mountable metal sensor, diameter 30mm, threaded M30 x 1.5. It features a cylindrical metal case and a 2m long cable. It has a sensing distance of 10mm. Its adjustable frequency range is 120 impluses/min to 3000 impluses/min. Two-wire, AC/DC (24V to 240VAC or 24V to 210VDC), 1 NC discrete output. This sensor has no run-up delay at power-up.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- cable
- Discrete Output Function
- 1 NC
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Product Or Component Type
- sensor
- Material
- metal
- Wiring Technique
- 2-wire
- Series Name
- Application
- [Sn] Nominal Sensing Distance
- 10 mm
- Detector Flush Mounting Acceptance
- flush mountable
- Sensor Design
- cylindrical M30
- Output Circuit Type
- AC/DC
[Us] Rated Supply Voltage24...210 V DC || 24...240 V AC 50/60 Hz
Type Of Output Signaldiscrete
Cable Length2 m
Sensor NameXSA
Size81 mm
Ip Degree Of ProtectionIP67 IEC 60529
Body Typefixed
Sensor Typeinductive proximity sensor
Switching Capacity In Ma5...200 mA DC || 5...350 mA AC
Enclosure Materialnickel plated brass
Device Applicationrotation monitoring
Complementary
- Status Led
- output state 1 LED red)
- Operating Zone
- 0-8 mm
- Threaded Length
- 67 mm
- Length
- 81 mm
- Maximum Residual Current
- 1.5 mA open state
- Thread Type
- M30 x 1.5
- Adjustable Frequency Range
- 120-3000 cyc/mn
- Run-Up Delay At Power-Up
- 0 s without
- Wire Insulation Material
- PVC
- Cable Composition
- 2 x 0.34 mm²
Repeat Accuracy3% of Sr
Maximum Voltage Drop<5.7 V closed)
MarkingCE
Net Weight0.3 kg
Switching Frequency<= 800 Hz
Sensing Range> 8...15 mm
Differential Travel3...15% of Fr
Supply Voltage Limits20-264 V AC/DC
Detection Facefrontal
Front MaterialPPS
Environment
- Product Certifications
- UL || CCC || CSA
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
