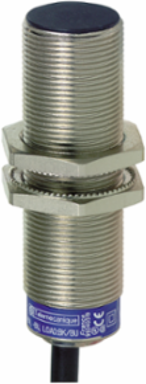

Telemecanique Sensors XS1M18MA250 Inductive proximity sensors XS, inductive sensor XS1 M18, L60mm, brass, Sn5mm, 24...240VAC/DC, cable 2 m
Telemecanique Sensors XS1M18MA250 Inductive proximity sensors XS, inductive sensor XS1 M18, L60mm, brass, Sn5mm, 24...240VAC/DC, cable 2 m
- MPN: XS1M18MA250
- PPN: TES-XS1M18MA250
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$322.83/ EA
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a multivoltage, cylindrical, flush mountable sensor. Diamter 18mm, threaded M18 x 1. It features a nickel plated brass case and a 2m long cable. It has a sensing distance of 5mm Two-wire, AC or DC supply, 24V to 240V, NO output, with short-circuit protection.
Specifications
Environment
- Product Certifications
- UL || CSA || CCC
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-7
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
Complementary
- Maximum Delay Response
- 2 ms
- Operating Zone
- 0-4 mm
- Threaded Length
- 51 mm
- Length
- 60 mm
- Maximum Residual Current
- 1.5 mA open state
- Thread Type
- M18 x 1
- Maximum Delay Recovery
- 4 ms
- Wire Insulation Material
- PVC
- Enclosure Material
- nickel plated brass
- Front Material
- PPS
Status Ledoutput state 1 LED yellow) || supply on 1 LED green)
Maximum Voltage Drop<5.5 V closed state)
MarkingCE
Net Weight0.12 kg
Switching Frequency<= 2000 Hz DC || <= 25 Hz AC
Differential Travel1...15% of Sr
Maximum Delay First Up70 ms
Detection Facefrontal
Cable Composition2 x 0.34 mm²
Specifications
- Electrical Connection
- cable
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Sensor Name
- XS1
- Size
- 60 mm
- Ip Degree Of Protection
- IP68 double insulation IEC 60529
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Switching Capacity In Ma
- 5...300 mA AC overload and short-circuit protection || 5...200 mA DC overload and short-circuit protection
- Wiring Configuration
- 2-wire
- Output Circuit Type
- AC/DC
[Us] Rated Supply Voltage24...210 V DC || 24...240 V AC 50/60 Hz
Type Of Output Signaldiscrete
Cable Length2 m
Materialmetal
Wiring Technique2-wire
Series Namegeneral purpose
[Sn] Nominal Sensing Distance5 mm
Detector Flush Mounting Acceptanceflush mountable
Sensor Designcylindrical M18
Protection Typeshort-circuit protection multi voltage
Device Application2-wire DC short-circuit protection
