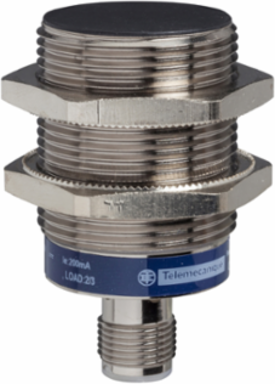

Telemecanique Sensors XS130B3PAM12 inductive sensor XS1 M30, L55mm, brass, Sn15mm, 12..24VDC, M12
Telemecanique Sensors XS130B3PAM12 inductive sensor XS1 M30, L55mm, brass, Sn15mm, 12..24VDC, M12
- MPN: XS130B3PAM12
- PPN: TES-XS130B3PAM12
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$133.05/ EA
Description
This XS cylindrical (M30 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. High corrosion and impact-resistant nickel plating, keeping aspect and performance of the sensor for a longer time. Nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is E2, CSA, UL certified.
Specifications
Environment
- Product Certifications
- E2 || UL || CSA
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
Complementary
- Current Consumption
- <= 10 mA no-load
- Status Led
- output state 1 LED yellow)
- Maximum Voltage Drop
- <2 V closed)
- Marking
- CE
- Net Weight
- 0.13 kg
- Thread Type
- M30 x 1.5
- Maximum Delay Recovery
- 1.4 ms
- Supply Voltage Limits
- 10-36 V DC
- Enclosure Material
- nickel plated brass
Maximum Delay Response0.6 ms
Operating Zone0-12 mm
Threaded Length32 mm
Length55 mm
Switching Frequency<= 500 Hz
Differential Travel1...15% of Sr
Maximum Delay First Up10 ms
Detection Facefrontal
Front MaterialPPS
Specifications
- Electrical Connection
- male connector M12, 4 pins
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Sensor Name
- XS1
- Size
- 55 mm
- Ip Degree Of Protection
- IP65 IEC 60529 || IP67 IEC 60529
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Switching Capacity In Ma
- <= 200 mA overload and short-circuit protection
- Output Circuit Type
- DC
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NO
Range Of ProductTelemecanique Inductive proximity sensors XS
Materialmetal
Wiring Technique3-wire
Series Namegeneral purpose
[Sn] Nominal Sensing Distance15 mm
Detector Flush Mounting Acceptanceflush mountable
Sensor Designcylindrical M30
Device Applicationmobile equipment
