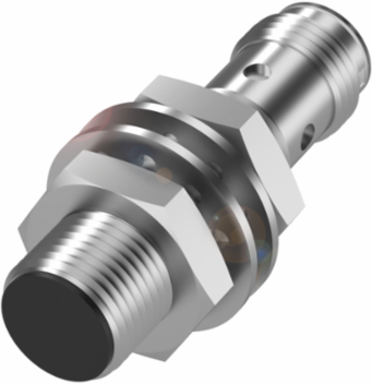

Balluff BES 516-325-G-E5-C-S4 Inductive Sensor Ø 12 x 45 mm, 10-30 VDC, IP68, PNP NO
Balluff BES 516-325-G-E5-C-S4 Inductive Sensor Ø 12 x 45 mm, 10-30 VDC, IP68, PNP NO
- MPN: BES 516-325-G-E5-C-S4
- PPN: BAL-BES00PY
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$144.93/ EA
Description
Inductive standard sensors from Balluff exemplify precision and reliability in automation applications. Designed for flush mounting, these sensors operate within a voltage range of 10-30 VDC and can withstand ambient temperatures from -25 to 70 °C, making them suitable for a variety of environments. With a robust brass housing and nickel-free coated surface, they ensure durability and compliance with multiple industry standards, including CE and cULus. The M12x1 connector facilitates easy integration, while the IP68 rating guarantees protection against dust and water ingress. Featuring a switching output of PNP Normally Open (NO) and a high switching frequency of 2500 Hz, these sensors provide efficient and accurate performance for your automation and control needs.
Specifications
Specifications
- Dimension
- Ø 12 x 45 mm
- Installation
- for flush mounting
- Switching output
- PNP Normally open (NO)
- Housing material
- Brass
- Material sensing surface
- PBT
- Operating voltage Ub
- 10-30 VDC
- IP rating
- IP68
StyleM12x1
Range4 mm
Switching frequency2500 Hz
Surface protectionNickel-free coated
ConnectionConnector, M12x1-Male, 4-pin
Ambient temperature-25-70 °C
Approval/ConformityCE, cULus, EAC, WEEE
