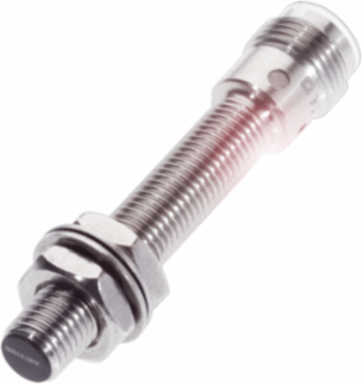

Inductive standard sensors with preferred types BES M08EH-PSC20B-S04G
Balluff

Balluff BES M08EH-PSC20B-S04G Inductive standard sensors with preferred types BES M08EH-PSC20B-S04G

  • MPN: BES M08EH-PSC20B-S04G
  • PPN: BAL-BES01PH

CAD

$174.98

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.

Documentation & Downloads

Specifications

Additional

Operating Voltage
10-30 V DC
Rated Operating Current
200 mA
Rated Operating Distance
2 mm
Real Switching Distance
2 mm
Repeat Accuracy Max
5% of Sr
Tolerance Sr
10%
Load Capacitance Max
1 F
No-Load Current Max Undamped
2 mA
Residual Current Max
10 A
Output Resistance
33 kOhm
Short-Circuit Protection
Yes
Rated Insulation Voltage
250 V AC
Installation
Flush mounting
Style
M8x1
Switching Output
PNP Normally open (NO)
Material Sensing Surface
PBT
Ambient Temperature Range
-25 to 70 C
MTTF (40 C)
595 years
Rated Operating Voltage24 V DC
Switching Frequency5000 Hz
Assured Operating Distance1.6 mm
Hysteresis Max15% of Sr
Temperature Drift Max10% of Sr
Voltage Drop Static Max2.5 V
No-Load Current Max Damped7 mA
Ripple Max15% of Ue
Rated Short Circuit Current100 A
Polarity Reversal ProtectionYes
Protection ClassClass II
ConnectionM12x1-Male, 3-pin
Dimension8 x 58 mm
Tightening Torque8 Nm
Housing MaterialStainless steel
IP RatingIP68
Contamination Scale3
Approval/ConformityCE, cULus, EAC, WEEE
