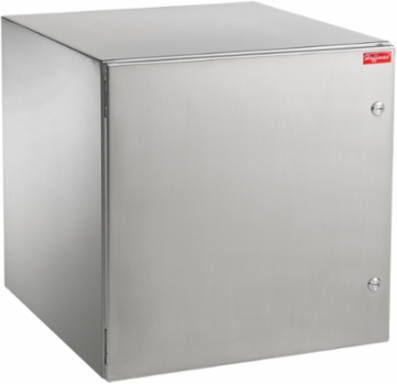

Nvent Hoffman PTRS362412X ProTek Single-Door Solid Type 4 4X 12, 36.30x23.62x11.81, Brushed, SS304
Nvent Hoffman PTRS362412X ProTek Single-Door Solid Type 4 4X 12, 36.30x23.62x11.81, Brushed, SS304
- MPN: PTRS362412X
- UPC: 783510240530
- PPN: HOF-PTRS362412X
- UNSPSC: 43223306
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3524.77/ EA
Description
ProTek Single-Hinged Cabinets protect wall-mounted equipment in harsh environments. This ProTek Single-Door Solid Type 4 4X 12, PTRS362412X item measures 36.30x23.62x11.81in. with a material of SS304 finish Brushed.
Features
- Solid-door cabinet provides complete physical and visual protection
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Doors are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Key-locking wing knob is included on painted steel offering, providing access control to the cabinet; two keys are included with each cabinet
- Stainless steel cabinet is provided with a quarter-turn slotted latch
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 600
- Protection Rating
- NEMA Type 12
- Finish
- Brushed #3
- Rack Units
- 19
- IP Rating
- IP66
- Weight
- 86
- Material
- Stainless Steel
Height (H)922
Depth (D)300
Product FamilyProTek
Thickness (T)1.9
Additional Rack AnglesPTRA36T or PTRA36S
NEMA Rating12 Indoor, dust-resistant
Sub BrandProTek
