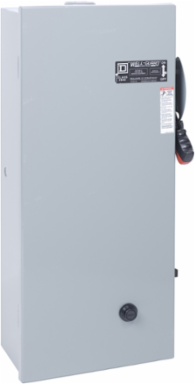

Square D 8940SSC2007 Pump Panel NEMA Type S Size 1 7.5HP 230/240VAC 30A Fusible Disconnect
Square D 8940SSC2007 Pump Panel NEMA Type S Size 1 7.5HP 230/240VAC 30A Fusible Disconnect
- MPN: 8940SSC2007
- UPC: 785901011743
- PPN: SCH-8940SSC2007
- UNSPSC: 39121521
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3326.25/ EA
Description
Pump Panel NEMA Type S Size 1 7.5HP 230/240VAC 30A Fusible Disconnect
Features
- Flexible with four overload relays: Motor Logic™ solid state, Adapted Bimetal, and melting alloy types
- Pump panels are extremely customizable with other devices and accessories
- Robust design and reliable build for long mechanical life and electrical endurance
- Serviceable by replacing contacts and coils rather than replacing the entire product
- Pump panels, in NEMA Type 3R enclosures, are specifically designed for irrigation or oil field applications.
Specifications
Conformance Attributes
- Product Certifications
- UL Listed, NEMA
Complementary Attributes
- Control Circuit
- common control circuit
- Maximum Horse Power Rating
- 7.5-7.5 hp 240 V AC, 3 phase
Line Rated Current27 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- selector switch HAND-OFF-AUTO), push-button START)
- Uc Control Circuit Voltage2
- 240 V AC 60 Hz, 220 V AC 50 Hz
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Associated Fuse Rating
- 30 A
- Device Application
- pumping
- Disconnector Device Type
- fusible disconnect switch
- Enclosure Type
- weatherproof enclosure indoor/outdoor
- Fuse Type
- H or K
- Permissible Voltage
- 600 V AC
- Range
- Square D
- Sustainable Packaging
- No
- Medium Desc
- Pump Panel, NEMA Type S, Well Guard, Size 1, 27A, 5kA SSCR, 7.5HP, 30A fuse clip, Motor Logic SSOLR, 220/240VAC 50/60Hz coil, NEMA 3R
- Product Kit Identifier
- N
- Product Name
- Well-Guard Control
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Protection Typeoverload, phase loss, phase unbalance
Uc Control Circuit Voltage5240 V AC 60 Hz, 220 V AC 50 Hz
Local Publishable Date2025-11-13
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeYes
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Control Circuitcommon control circuit
Device Short Nameclass 8940 type SS
Electrical Connectionscrew terminal
Energy Efficiency OptimizedFalse
Package Weight Lbs25.419 kg
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Thermal Overload TypeMotor Logic solid state class 10/20
Stocking FlagY
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Nema Degree Of Protection
- NEMA 3R
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Nema Size1
Packaging Without Single Use PlasticNo
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 246 mm
