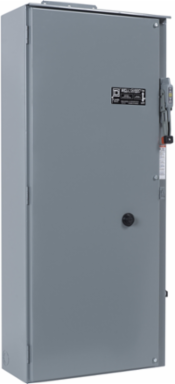

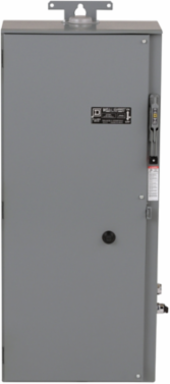

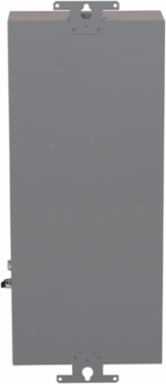

Square D 8940SSF4100 Well-Guard Pump Panel Size 4, 100HP, 135A, NEMA 3R
- MPN: 8940SSF4100
- UPC: 785901011828
- PPN: SCH-8940SSF4100
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Well-Guard pumping plant panels are designed for pumping applications. These panels provide extra space for field installation of auxilliary equipment. These panels us Type S non-reversing magnetic starters. Panel has a 200A fusible disconnect switch. This NEMA Size 4 starter has a 100 HP at 480 VAC three phase rating and has a maximum rating of 135 Amperes. This 3 pole starter is for three phase applications. The starters in these panels are available with a wide variety of replaceable coil voltages. The starter in this device has a 440/480 VAC 50/60 Hz operating coil wired for common control. This Well-Guard pump panel has a Motor Logic overload relay to sense over current conditions. A painted sheet steel NEMA 3R rainproof enclosure is used to protect this starter. Enclosure is 49.00 inches tall, 19.15 inches wide and 10.37 inches deep. A wide variety of accessories are available for Type S starters. This pump panel is supplied with a START momentary push button and a HAND/OFF/AUTO selector switch. These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment. They are also CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth263 mm
Complementary Attributes
- Control Circuit
- common control circuit
- Maximum Horse Power Rating
- 100-100 hp 480 V AC, 3 phase
Line Rated Current135 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- selector switch HAND-OFF-AUTO), push-button START)
- Certificate Agency
- UL Listed, NEMA
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Circuit
- common control circuit
- Device Short Name
- class 8940 type SS
- Electrical Connection
- screw terminal
- Energy Efficiency Optimized
- False
- Number Of Poles
- 3
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- Square D
- Sustainable Packaging
- No
- Height Nominal
- 1245 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Protection Typeoverload, phase loss, phase unbalance
[Uc] Control Circuit Voltage480 V AC 60 Hz, 440 V AC 50 Hz
Local Publishable Date2026-03-25
Stocking FlagN
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2542
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating200 A
Device Applicationpumping
Disconnector Device Typefusible disconnect switch
Enclosure Typeweatherproof enclosure indoor/outdoor
Fuse TypeH or K
Permissible Voltage600 V AC
Product NameWell-Guard Control
ReturnabilityYes
Thermal Overload TypeMotor Logic solid state class 10/20
Width Nominal522 mm
Package Weight(Lbs)63.503 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant By Exemption
- Nema Size
- 4
- Packaging Without Single Use Plastic
- Yes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Nema Degree Of ProtectionNEMA 3R
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
