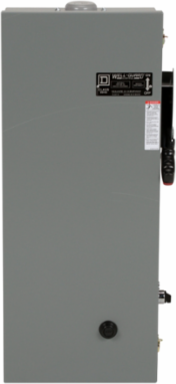

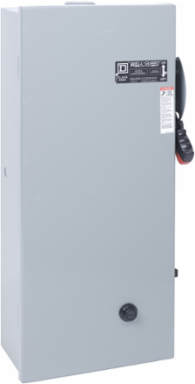

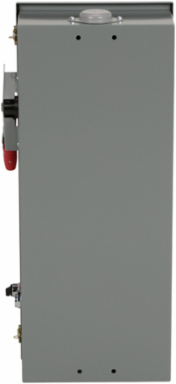

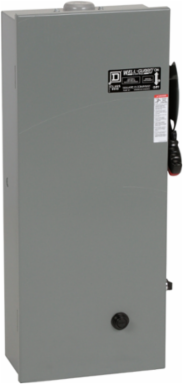

Square D 8940SSC4010 Well-Guard Pump Panel NEMA Type S 10HP 27A 3 Pole 440/480VAC
Square D 8940SSC4010 Well-Guard Pump Panel NEMA Type S 10HP 27A 3 Pole 440/480VAC
- MPN: 8940SSC4010
- UPC: 785901011781
- PPN: SCH-8940SSC4010
- UNSPSC: 39121521
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3326.25/ EA
Description
Well-Guard Pump Panel NEMA Type S 10HP 27A 3 Pole 440/480VAC
Features
- Flexible with four overload relays: Motor Logic™ solid state, Adapted Bimetal, and melting alloy types
- Pump panels are extremely customizable with other devices and accessories
- Robust design and reliable build for long mechanical life and electrical endurance
- Serviceable by replacing contacts and coils rather than replacing the entire product
- Pump panels, in NEMA Type 3R enclosures, are specifically designed for irrigation or oil field applications.
Specifications
Conformance Attributes
- Product Certifications
- UL Listed, NEMA
Complementary Attributes
- Control Circuit
- common control circuit
- Maximum Horse Power Rating
- 10-10 hp 480 V AC, 3 phase
Line Rated Current27 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- selector switch HAND-OFF-AUTO), push-button START)
- Uc Control Circuit Voltage2
- 480 V AC 60 Hz, 440 V AC 50 Hz
- Local Data Status
- Publishable
- Manufacturer
- Schneider Electric
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- Yes
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Control Circuit
- common control circuit
- Device Short Name
- class 8940 type SS
- Electrical Connection
- screw terminal
- Energy Efficiency Optimized
- False
- Package Weight Lbs
- 26.308 kg
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Thermal Overload Type
- Motor Logic solid state class 10/20
- Stocking Flag
- N
- Global Commercial Status
- Commercialised
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Protection Typeoverload, phase loss, phase unbalance
Uc Control Circuit Voltage5480 V AC 60 Hz, 440 V AC 50 Hz
Local Publishable Date2025-11-13
Legacy WEEE ScopeIn
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Associated Fuse Rating30 A
Device Applicationpumping
Disconnector Device Typefusible disconnect switch
Enclosure Typeweatherproof enclosure indoor/outdoor
Fuse TypeH or K
Permissible Voltage600 V AC
RangeSquare D
Sustainable PackagingNo
Medium DescPump Panel, NEMA Type S, Well Guard, Size 1, 27A, 10HP, 5kA SSCR, 30A fuse clip, Motor Logic SSOLR, 440/480VAC 50/60Hz coil, NEMA 3R
Product Kit IdentifierN
Product NameWell-Guard Control
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Nema Degree Of Protection
- NEMA 3R
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Nema Size1
Packaging Without Single Use PlasticNo
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 246 mm
Downloads
