Schneider Electric 9001KR8P1GH25 Push button, Harmony 9001K, metal, mushroom 41mm, green, 30mm, 3 positions, spring return, 110...120V, 1NC late + 1NC

Push button, Harmony 9001K, metal, mushroom 41mm, green, 30mm, 3 positions, spring return, 110...120V, 1NC late + 1NC
  • MPN: 9001KR8P1GH25
  • UPC: 785901851943
  • PPN: SCH-9001KR8P1GH25

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$314.43/ EA

Description

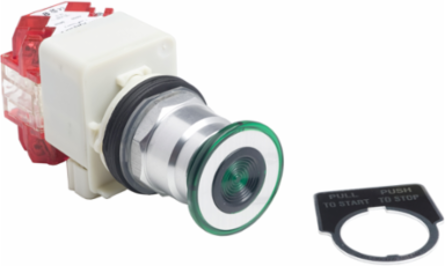

This green illuminated push button is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It uses screw-clamp terminals and has 2 x NC contact. It is easily installed into a standard 30mm diameter panel cut-outs. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Specifications

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP121006EN
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation
X
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A

Specifications

Operator Additional Information
screw-on plastic
Product Or Component Type
illuminated push-button
Range Of ProductHarmony 9001K
Device Short NameK

Complementary

[Us] Rated Supply Voltage
110...120 V
Light Block Supply
without supply
Light Block Supply
via integral transformer
Cap/Operator Or Lens Colour
green
Device Presentation
complete product
Bezel Material
metal
Contact Operation
late-break
Type Of Operator
pull : spring return, center : stay put, push : spring return
Bulb Base
BA 9s
Light Sourceincandescent bulb
Mounting Diameter30 mm
Operator Profilemushroom Ø 41 mm
Size30 mm
Contacts Type And Composition1 NC late break + 1 NC
[Ie] Rated Operational Current10 A, AC-15 || 10 A, DC-13
Operator Position Information3 positions
Supply Frequency50...60 Hz

Environment

Product Certifications
CE || CSA LR 25490 class 3211 03 || NEMA || UL listed file E42259 CCN NKCR
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
