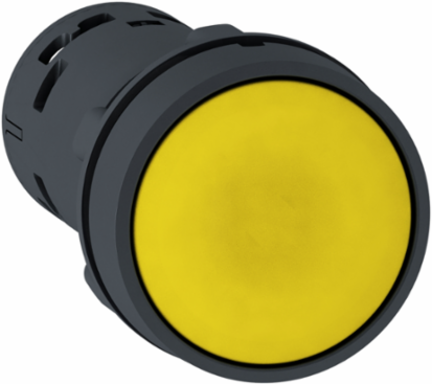

Schneider Electric XB7NA81 Harmony XB7 Round Yellow Push Button 22mm Spring Return 1NO IP65
- MPN: XB7NA81
- PPN: SCH-XB7NA81
CAD
$31.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XB7, flush monolithic yellow push button operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB7
- Type Of Operator
- spring return
- Shape Of Signaling Unit Head
- round
- Device Presentation
- monolithic product
- Contacts Type And Composition
- 1 NO
- Operator Profile
- yellow flush, unmarked
Mounting Diameter22 mm
Product Or Component Typepush-button
Ip Degree Of ProtectionIP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
Sale Per Indivisible Quantity10
Device Short NameXB7
Complementary
- Terminals Description Iso N°1
- (13-14)NO

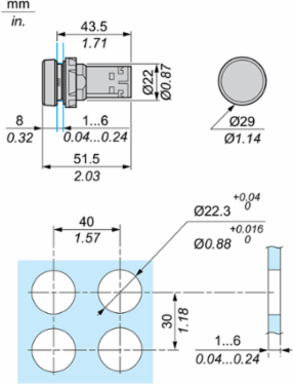

- Fixing Center
- >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
- Fixing Mode
- fixing nut beneath head 2-2.4 N.m
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
- Electrical Durability
- 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
- [Ie] Rated Operational Current
- 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
- Mechanical Durability
- 1000000 cycles
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Cad Overall Depth
- 51.5 mm
- Device Mounting
- fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1
Short-Circuit Protection4 A cartridge fuse gG IEC 60947-5-1
Positive Openingwith (only NO)
Net Weight0.021 kg
Cad Overall Height29 mm
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
Contact Operationslow-break
Electrical Reliabilityλ <= 10exp(-6) 17 V, 5 mA IEC 60947-5-4
Cad Overall Width29 mm
Shape Of Screw Headcross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Environment
- Product Certifications
- CCC || GOST
- Standards
- CSA C22.2 No 14 || JIS C8201-5-1 || UL 508 || IEC 60947-1 || IEC 60947-5-1 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Overvoltage Category
- class II IEC 61140
- Protective Treatment
- TH
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 12 UL 50 E || NEMA 3 UL 50 E
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1805012EN
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1805012EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
