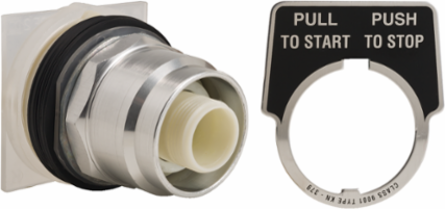

Harmony 30mm Metal Push-button Head, 3 Positions, Spring Return
Schneider Electric

Schneider Electric 9001KR8 Harmony 30mm Metal Push-button Head, 3 Positions, Spring Return

  • MPN: 9001KR8
  • UPC: 785901008804
  • PPN: SCH-9001KR8

CAD

$98.15

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This product is part of the Harmony 9001K range, an offer of Ø 30mm metal pushbuttons, switches and pilot lights." "This pushbutton operator has a round shaped head without cap flush." "It operates with spring return mechanism, which makes switch automatically return to its original or rest position." "This type K Plus options head is fitted with metal full guard." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also suitable for automotive, water and wastewater treatment applications." "It is installed into a Ø 30mm panel cutout." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."

Documentation & Downloads

Specifications

Key Specifications

Range Of Product
Harmony 9001K
Product Or Component Type
head for push-button
Operator Profilewithout cap flush
Device Short Name9001K

Complementary

Contacts Type And Composition
without contact block
Operator Position Information
3 positions
Type Of Operator
spring return
Shape Of Signaling Unit Head
round
Bezel Materialmetal
Mounting Diameter30 mm
Type Of Operatorpull : spring return, center : stay put, push : spring return
Cap/Operator Or Lens Colourwithout mushroom

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP121006EN
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
