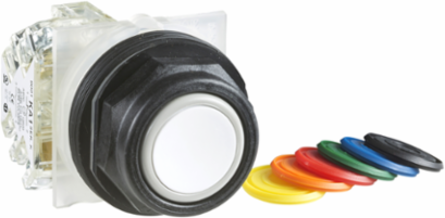

Schneider Electric 9001SKR1UH5 Harmony 30mm Flush Push-Button, 1 NO, IP66, 7 Color Options
- MPN: 9001SKR1UH5
- UPC: 785901042129
- PPN: SCH-9001SKR1UH5
CAD
$77.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony 9001SK, modular flush push button with full guard and set of 7 color caps has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel and has 1 x NO contact. This flush push button with full guard and set of 7 color caps provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Operator Additional Information
- plastic guard
- Operator Profile
- 7 colours choice flush, unmarked
- Product Or Component Type
- push-button
Range Of ProductHarmony 9001SK
Type Of Operatorspring return
Device Short Name9001SK
Complementary
- [Icm] Rated Short-Circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13
- [Ui] Rated Insulation Voltage
- 250 V 3)EN/IEC 60947-1
- Bezel Material
- plastic
- Connections - Terminals
- screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- Contacts Material
- silver alloy contacts
- Positive Opening
- without
- Operator Profile
- flush
- Operating Position
- any position
- Rated Breaking Capacity
- 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.1 kA 480 V AC-15
- Cap/Operator Or Lens Colour
- 7 colours choice
- Shape Of Screw Head
- cross slotted
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV EN/IEC 60947-1
- Device Presentation
- complete product
Contacts Type And Composition1 NO
Short-Circuit Protection10 A cartridge fuse EN/IEC 60947-5-1
[Ie] Rated Operational Current3 A 240 V, AC-15, A600-Q600 || 0.55 A 125 V, DC-13, A600-Q600
Contact Operationstandard
Mechanical Durability5000000 cycles
Mounting Diameter30 mm
Type Of Operatorspring return
[Ith] Conventional Free Air Thermal Current10 A
Shape Of Signaling Unit Headoctagonal
Tightening Torque0.8-0.8 N.m EN/IEC 60947-1
Net Weight0.086 kg
Size30 mm
Environment
- Product Certifications
- UL 508 || NEMA
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- Shock Resistance
- 50 gn IEC 60068-2-27
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
StandardsJIS C 852 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C 4520
Electrical Shock Protection Classclass II IEC 61140
Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- EnvPEP120817EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
