APC AP7557NA Zero U Rack PDU 11 kW 230V, (36) C13 & (6) C19, 12.39 lb, 400 V 3 Phase

MPN: AP7557NA
UPC: 731304263784
PPN: APC-AP7557NA

$1820.90

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

It is a high-capacity power distribution unit designed for demanding IT environments. It operates at an input voltage of 400V 3-phase and supports a maximum load capacity of 11kW. The PDU features 36 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, providing ample power distribution options. This APC NetShelter Basic Rack PDU comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions Mounting is easy and does not require additional tools in APC NetShelter Enclosures and most third-party racks.

Features

Ideal for staffed sites and non-critical applications
Supports up to 11 kW of power, making it suitable for high-density environments
Sustainable performance backed by product environmental profile
Zero U design allows for vertical mounting, saving valuable rack space
Protect against overloads and enables a quick recovery

Documentation & Downloads

Specifications

Additional

Power Capacity	11 kW
Input Voltage	400 V 3 phase
Line Rated Current	16 A
Input Frequency	50/60 Hz
Height	70 in (177.8 cm)
Depth	1.73 in (4.4 cm)
Mounting Position	side, vertical
Rack Units	0 U
Compliance	UL Listed, RoHS Compliant, Lead Free, Reach SVHC Free
Storage Temperature Range	-13 to 149 F (-25 to 65 C)
Storage Altitude	0 to 50,000 ft

Load Capacity	11,500 VA
Output Voltage	230 V
Input Current Limit	20 A
Weight	12.39 lb (5.62 kg)
Width	2.20 in (5.6 cm)
Cord Length	3 ft (0.91 m)
Mounting Mode	Rack-mounted

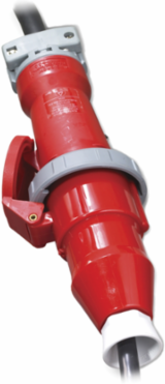

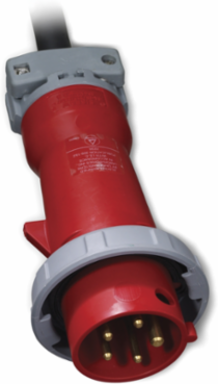

Input Plug Type	IEC 60309 20 A 3P+N+E
Operating Temperature Range	23 to 113 F (-5 to 45 C)
Operating Altitude	0 to 10,000 ft
Relative Humidity	5 to 95 %
