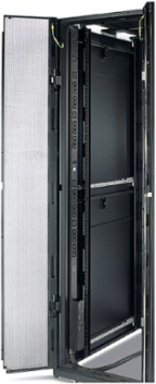

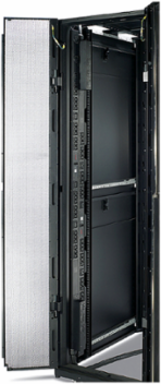

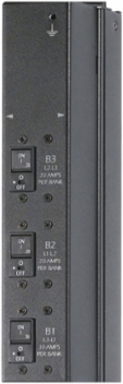

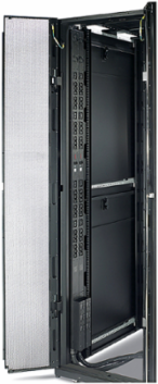

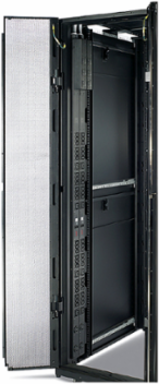

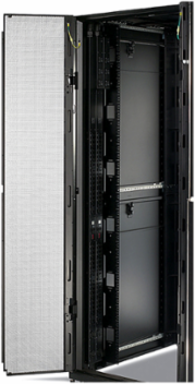

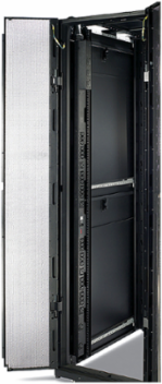

APC AP7899B Rack Power Distribution Unit, 14.4kW, 208V, (24)C13, (4)C19, (2)L6-30R, 0U Height
- MPN: AP7899B
- UPC: 731304331551
- PPN: APC-AP7899B
CAD
$3447.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Rack Power Distribution Unit, 14.4kW, 208V, (24)C13, (4)C19, (2)L6-30R, 0U Height
Features
- Resettable circuit breakers — Enables a quick recovery from overload events.
- Toolless Rack Mounting Capabilities — Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
- Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures. — Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 14.4 kW
- Output Voltage
- 208 V
- Input Current Limits
- 50 A
- Input Frequency
- 50/60 Hz
- Width
- 2.2 in (5.6 cm)
- Weight
- 22.84 lb (10.36 kg)
- Mounting Position
- side, vertical
- Number of Input Connectors
- 1 CS8365
- Compliance and Approvals
- UL Listed, cUL Listed, CSA, Industry Canada, METI Denan
- RoHS
- Compliant with exemptions
- Lead Free
- Yes
- Customs Number
- 8537109160
Input Voltage208 V 3 phase
Line Rated Current40 A
Load Capacity14400 VA
Height70 in (177.8 cm)
Depth3.74 in (9.5 cm)
Rack Height0U
Cord Length10 ft (3.05 m)
Outlet Type and Quantity2 NEMA L6-30R, 24 IEC 60320 C13, 4 IEC 60320 C19
WEEEEU market waste compliant
Mercury FreeYes
REACH Free of SVHCYes
