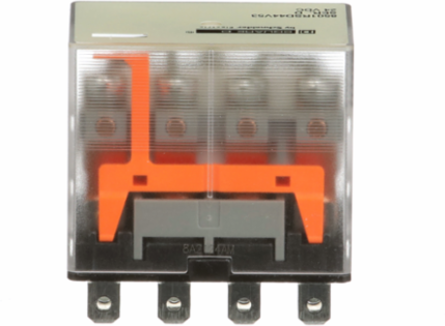

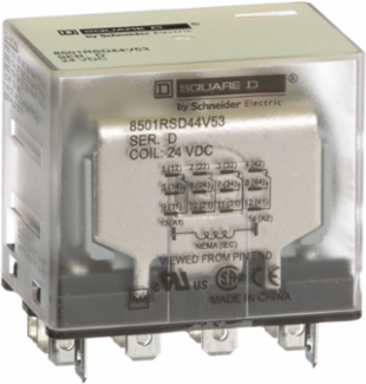

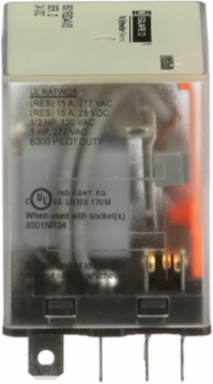

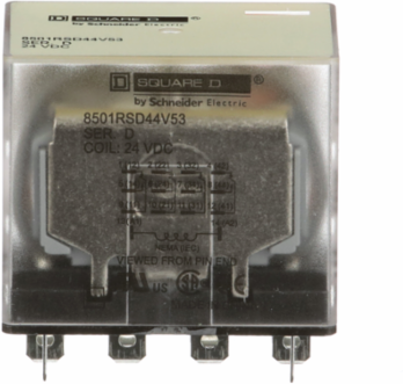

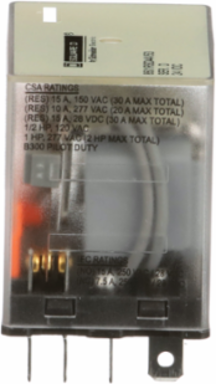

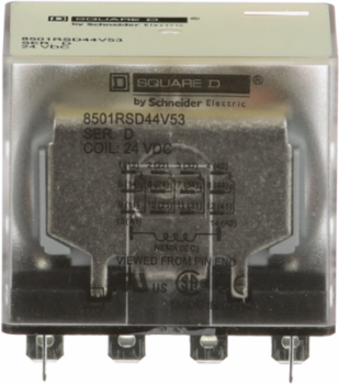

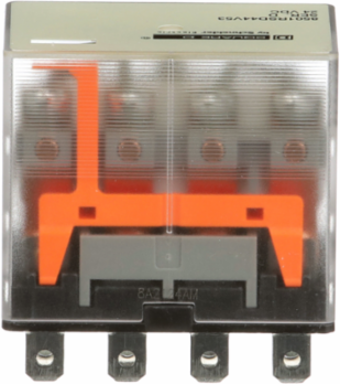

Square D 8501RSD44V53 Miniature Relay, 1HP at 277VAC, 15A Resistive, 4PDT Contacts
- MPN: 8501RSD44V53
- UPC: 785901137238
- PPN: SCH-8501RSD44V53
CAD
$69.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR34 or 8501NR34B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC and at 28VDC, a 10 ampere resistive rating at 277 VAC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay does not have a green LED indicator. Relay is 1.07 inches tall, 1.60 inches wide and 1.65 inches deep. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, United States
Depth41.8 mm
Complementary Attributes
- Maximum Switching Voltage
- 300 V AC, 30 V DC
- Rated Power In Hp
- 0.5 120 V AC, 1 277 V AC
Rated Breaking Capacity3 A 120 V AC inductive control circuit UL 508, 1.5 A 240 V AC inductive control circuit UL 508, 10 A 120 V AC resistive control circuit UL 508, 6.67 A 277 V AC resistive control circuit UL 508, 10 A 28 V DC resistive control circuit UL 508
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Operating Time
- 20 ms - pick-up, 20 ms - drop-out
- Local Data Status
- Publishable
- Return Indicator
- Y
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI1310013EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Contacts Material
- silver alloy, gold flashed
- Local Signalling
- no indicator
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- 8501R
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP1310013EN
- Width Nominal
- 40.6 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyUL Listed, UL Recognized, CSA, CE
Local Publishable Date2026-01-12
Stocking FlagN
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typewithout test button
Mounting Supportsocket
Product Or Component TypeMiniature Relay
Relay Typestandard
Shape Of Pinspade
Switch Function4PDT
Height Nominal27.3 mm
[Uc] Control Circuit Voltage24 V DC
Package Weight(Lbs)68.492 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-131 °F, -40-131 °F
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP1310013EN
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- 8501NR34
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Circularity ProfileENVEOLI1310013EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
Pep CodeENVPEP1310013EN
General Attributes
- Product Or Component Type
- Miniature Relay
Range Of Product8501R
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
